NEWTON WATERPROOFING SYSTEMS: Crystalline Waterproofing of Concrete Newton HydroCoat 104 Super - Crystalline Waterproofing of Concrete
HydroCoat 104 is applied to the surface of concrete to provide in-depth protection against the movement of moisture through the capillaries and hairline cracks within the concrete. It consists of Portland cement, specially treated quartz sand and a compound of active chemicals. HydroCoat / HydroTank 104 is supplied in powdered form and is either sprinkled onto fresh concrete or is mixed with water as a carrier and brush or spray applied as slurry for application to fully cured or older concrete or vertical surfaces.The active chemicals combine with the free lime and moisture present within the capillaries to form insoluble crystalline complexes which effectively block the capillaries and any minor shrinkage cracks to prevent any further movement of moisture to provide a totally dry surface to the concrete.Large areas can be quickly treated with HydroCoat 104. The speed of application and the low material application rate (1 kg/m²) makes this product a very low-cost option for various scenarios.Because HydroCoat / HydroTank 104 penetrates deep into the concrete, it does not leave a physical membrane to the surface of the concrete element and so is completely unaffected by loadings imposed by further elements of the build. New concrete elements are placed ‘concrete to concrete’ with no potential for slip or separation as is the case with physical membranes.Surface preparation is required, as is protection after application - consult manufacturer for details.Features and benefits:Single component.Ease of application – sprinkled onto new concrete and applied as a simple slurry to vertical and cured concrete.Permeates deep into the concrete to form a barrier against moisture that cannot be damaged or punctured.Loading capabilities only limited by the strength of the concrete.No physical membrane – subsequent concrete placement is ‘concrete to concrete’.Can be applied by airless spray for quicker application.Concrete treated with HydroCoat / HydroTank 104 remains vapour permeable, allowing the structure to breathe.Easy to detail and specify as the concrete surface becomes the membrane.HydroCoat / HydroTank 104 requires controlled curing. Once the HydroCoat / HydroTank 104 begins to cure, moisten with a fine fog spray of water 2–3 times a day for three days. In hot or windy conditions, water spray should be applied more frequently.Cost-effective alternative to conventional physical membranes.Curing:To be kept rain-free: For 3 hours (at all temperatures).Ready for temporary traffic/ protection boards: After 3 hours (at all temperatures).Initial set: At 5°C: After 6 hours; at 10°C: After 4 hours; at 15°C: After 2 hours; at 20°C: After 1 hour; at 25°C: After 45 minutes.Fully cured: After 28 days. Crystallization active slurry mortars

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Drainage and Water-Retention Green Roof Membrane Newton 420 Reservoir - Extensive Green Roof Drainage Membrane
Unlike other products of this type, Newton 420 Reservoirhas a bonded geotextile that prevents intrusion of the soil into the water-holding cups during back-fill and compression. This results in a permanently larger volume reservoir than any other 20 mm deep green roof membrane.When the water holding cups are full, the large drainage holes within the high-density polyethylene (HDPE) core allow water to easily pass through to the drainage layer below to prevent saturation and water logging of the green roof above.Newton 420 Reservoir should continue over construction and movement joints and acts as a decoupling membrane preventing movement from the substrate transferring through to the surface finish. Consult manufacturer's literature for relevant surface preparation.Features and benefits:Exclusive bonded geotextile does not sag into the water holding cups as is the case with loose laid geotextiles.Large drainage holes allow a much higher drainage flow through the membrane than comparative products, ensuring that when the water holding cups are full, the water drains quickly so as not to waterlog the soil.Suspended soil particles (fines) are filtered out by the geotextile layer.Large drainage layer created by the 20 mm HDPE core.Tough and durable.Quick and easy to install. High-density polyethylene (PE-HD) studded sheets

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Drainage Membrane Newton NewSeal 408 DeckDrain for Decks & Flat Roofs - Drainage Membrane for Decks & Flat Roofs
The double-cuspated design provides two layers of drainage; allowing for primary drainage through the geotextile filter, as well as secondary drainage between the underside of NewSeal 408 DeckDrain and the primary waterproofing layer. The lower drainage layer eliminates the risk of trapped water, a problem associated with conventional single cuspated deck drainage membranes.Features and benefits:Provides a clear and clean drainage path for surface water to roof drainage outlets.Double cuspated (drainage studs to the upper and lower surfaces) design provides a clear and clean drainage path above the deck waterproofing membrane, to ensure that water cannot be trapped above the deck membrane, as can be the case with single cuspated deck drainage membranesSuspended soil particles (fines) are filtered out by the geotextile layer.Quick and easy to install. High-density polyethylene (PE-HD) studded sheets

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Externally Applied Drainage Membrane Newton HydroBond 410 GeoDrain - Externally Applied Drainage Membrane
A two-core drainage sheet consisting of a non-woven geotextile filter layer thermally welded to a water impermeable high-density polyethylene (HDPE) drainage membrane.The product provides drainage and protection to the outside face of basement walls to sloping sites, preventing the build-up of water pressure and protecting the structure from aggressive water, chemicals and toxins, and provides mechanical protection only when used against the ‘Type A’ waterproofing where the site is not sloping and so where ground water removal is not viable or recommended.Consult manufacturer's literature for relevant installation information.Features and benefits:Assists in moving water around and downhill of the structure to sloping sites to prevent water pressure from bearing against the structure.Resistant to all chemicals normally found in the ground and unaffected by soil, bacteria and fungi.Withstands stresses and movement acting as a slip membrane as the backfill settles.Allows for backfilling with excavated earth.Extremely strong material, minimising the risk of damage when backfilling even when no protection board is used.Very high compressive strength.Suspended soil particles (fines) are filtered out by the geotextile layer.Quick and easy to install with a range of ancillary fixing and installation products.CE marked, and manufactured in accordance with EN 13252: 2016. High-density polyethylene (PE-HD) studded sheets

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Flat Loose Laid Flooring Membrane Newton DampSafe 601 Slimline - Flat High Grade Flooring Membrane
A high-grade flooring membrane used primarily for isolating moisture-sensitive flooring from dampness in the floor slab. It can be used as the floor membrane as part of Newton external waterproofing & drainage membranes when the survey has ascertained that no risk of water entering through the body of the slab.The product allows for the installation of sensitive flooring to be laid above ‘green’ still curing concrete as soon as the concrete is walkable, usually two days, significantly reducing project times.Guaranteed against deterioration for 30 years and has a life expectancy of at least 50 years.DampSafe 601 Slimline can be finished over with screed, 18 mm or 22 mm tongue and groove chipboard, or particle board. Laminate and timber flooring should be installed over a layer of 18 mm or 22 mm tongue and groove chipboard. Sports floors are also suitable - consult the manufacturer for details.Consult the manufacturer's literature for relevant surface preparation recommendations.Features and benefits:Can be installed above slabs that are not yet cured, and as soon as the concrete is walkable.Able to resist very high compressive loading.Can be installed as a high-load DPC within structural block walls.Inert and highly resistant to water, alkalis, hydro-carbons, saline solutions and organic acids.Not affected by minerals, and resistant to bacteria, fungi and other small organisms. High-density polyethylene (PE-HD) studded sheets

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Flexible Construction Joint Waterproofing System - Newton FlexProof 106 - Construction Joint Waterproofing
Newton FlexProof 106 advanced single component liquid waterproofing material, which forms an elastomeric polymer membrane that is rainproof in minutes and capable of handling severe building movements and deformations.Available in two forms:FlexProof 106-X1 is a highly viscous, thixotropic paste that is suitable for the waterproofing of construction and vertical movement jointsFlexProof 106-NV has a lower viscosity and so is pourable and better suited where the application is to horizontal movement jointsFlexProof 106 Primer – Improves adhesion to porous surfacesKey benefits:No mixing requiredCan be used in sub-zero temperatures and on slightly damp substrate100% waterproof, but allows vapour diffusionVery flexible – Resistant to movement and fissures in substrateExcellent adhesion to suitable substratesResistant to temperature variations maintaining its characteristics between -40ºC & 90ºCExcellent resistance to the high alkalinity of concrete Construction joint sealants

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Newton 103-S High Adhesion Liquid Waterproofing Membrane
Newton 103-S is a two-component, cementitious, modified-polymer waterproofing membrane with membrane with high adhesion, designed for the internal and external waterproofing of concrete and steel elements of water-retaining and water-resisting structures such as reservoirs, water tanks, below ground structures, podium decks, and parking areas. , Newton, Re-Seal System

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 104 Crystalline Waterproofing of Concrete
The active chemicals within Newton 104 combine with the free lime and moisture present within the capillaries to form insoluble crystalline complexes which effectively block the capillaries and any minor shrinkage cracks to prevent any further movement of moisture to provide a totally dry surface to the concrete. , Newton, Re-Seal System

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 106 FlexProof Construction Joint Waterproofing
Newton 106 FlexProof is a highly advanced single component liquid waterproofing material, which forms an elastomeric polymer membrane that is rainproof in minutes and capable of handling severe building movements and deformations. 106 FlexProof is quite unique with amazing characteristics allowing it to be used without a primer, without mixing and in weather conditions that preclude the use of alternatives. When applied by trowel or squeegee over construction joints in concrete, 106 FlexProof provides a continuous highly flexible membrane that is resistant to water pressures of up to 2 bar (20m) over construction joints of up to 0.25mm. , Newton, New Seal System

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 107F Cementitious Flexible Waterproofing Membrane
Newton 107F is a BDA approved, two-component, cementitious, polymer-rich coating for the waterproofing and protection of concrete and masonry that can be spray-applied and is therefore ideal for large projects. Capable of withstanding heads of both positive and negative water pressure up to 10 bar, Newton 107F is ideally suited to the waterproofing of reservoirs, tunnels, water tanks, basements, podium decks, flat roofs, balconies and terraces. Due to its elastic properties, it is especially capable where the structure has both masonry and concrete elements and where differential movement is expected. , Newton, HydroSeal

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 108 Hydrobond-LM Seamless Rubber Waterproofing Membrane
Newton 108 HydroBond-LM is a highly radon resistant, cold spray-applied, seamless rubber waterproofing membrane for the external waterproofing of basements (including covered decks) and foundation walls. Normally specified as part of our HydroBond System in conjunction with Newton 403 HydroBond®, the membrane can also be used on its own, terminating to raft or strip foundations. , Newton, Hydrobond

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 109-LM Radon Certified Rubber Waterproofing Membrane
Newton 109-LM is a radon-certified, flexible, single-component, cold-applied and seamless rubber waterproofing membrane used primarily for the external waterproofing of earth-retaining structures such as basements and foundation walls. Newton 109-LM is also adept as a detailing membrane for the termination and jointing of other Newton waterproofing products, and is the perfect primer for the adhesion of butyl products to concrete and mortar. , Newton, Hydrobond

Published [02/12/2021]

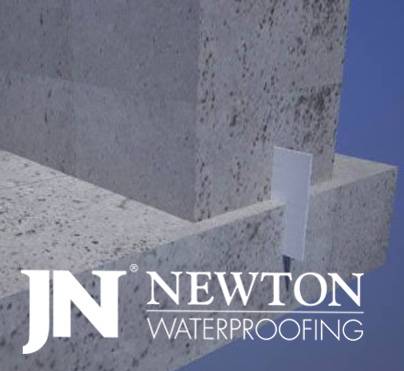

NEWTON WATERPROOFING SYSTEMS: Newton 301 EasyProof Metal Construction Joint Waterbar
Newton 301 EasyProof is a coated metal waterbar system used for the sealing of kickerless construction joints within retained concrete structures. , Newton, Hydro Tank

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 315 Polymer-Waterbar High Grade Hydrophilic Waterbar
Newton 315 Polymer-Waterbar is a hydrophilic, acrylate polymer waterbar, which swells when activated by moisture. It is characterised by high elasticity and high tensile strength. Newton 315 Polymer-Waterbar can be used to seal the structure against water leaks to cast-in-place concrete construction joints. , Newton, Hydro Tank

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 403 HydroBond Waterproofing Membrane and Gas Barrier
Newton 403 HydroBond is a high performance, self-healing, composite sheet membrane, available in two variants; both membranes When fitted above the raft support or to wall formwork, the membrane locking fleece is fully encapsulated into the newly placed concrete, becoming fully-engaged and preventing water tracking. , Newton, Hydrobond

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 408 DeckDrain Drainage Membrane for Decks & Flat Roofs
Newton 408 DeckDrain is a double cuspated that provides two layers of drainage; allowing for primary drainage through the geotextile filter, as well as secondary drainage between the underside of 408 DeckDrain and the primary waterproofing layer. The lower drainage layer eliminates the risk of trapped water, a problem associated with conventional single cuspated deck drainage membranes. , Newton, Deck Flex

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 410 GeoDrain Externally Applied Drainage Membrane
Newton 410 GeoDrain is a two-core drainage sheet consisting of a non-woven geotextile filter layer thermally welded to a water impermeable HDPE (High Density Polyethylene) drainage membrane. Newton 410 GeoDrain provides drainage and protection to the outside face of basement walls to sloping sites, preventing the build-up of water pressure and protecting the structure from aggressive water, chemicals and toxins, and provides mechanical protection only when used against the ‘Type A’ waterproofing where the site is not sloping and so where ground water removal is not viable or recommended. , Newton, Drainage Sheet

Published [02/12/2021]

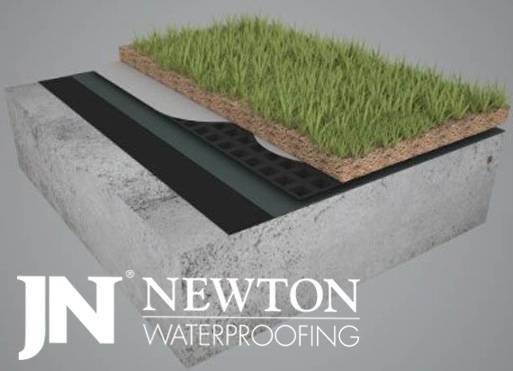

NEWTON WATERPROOFING SYSTEMS: Newton 420 Reservoir Extensive Green Roof Drainage Membrane
Newton 420 Reservoir is a unique drainage and water-retention membrane for use where a water reservoir is required for extensive green roofs of sedum, herbaceous plants, mosses or grass above decks and roofs. , Newton, Deck Flex

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 503 - 3mm Cavity Drain Membrane for Basements
Newton 503 is a high-quality cavity drain waterproofing membrane, supplied in a plain variant for walls and floors and a meshed variant for receiving plaster or render to walls, and used within Newton System 500 , CDM, Membrane

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 508 - 8mm Cavity Drain Membrane for Basements
Newton 508 is a high quality cavity drain waterproofing membrane, which is supplied in a number of variants for use within Newton System 500, , CDM, 508

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 508 eco Floor - 8mm Cavity Drain Membrane for Basement floors
Newton 508 is a high quality cavity drain waterproofing membrane, which is supplied in a number of variants for use within Newton System 500, , CDM, 508

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 520 eco - 20mm Recycled Cavity Drain Basement Floor Membrane
Newton 520 eco is a cavity drain waterproofing membrane made from recycled High Density Polyethylene (HDPE). It is one of the main constituent parts of Newton System 500, our BBA Certified, ‘Type C’ cavity drain system, , CDM, 520 Eco

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 601 Slimline - Flat Loose Laid High Grade Flooring Membrane
Flat Loose Laid High Grade Flooring Membrane – Primarily for isolating moisture sensitive flooring from dampness in the floor slab, but can also be used as the floor membrane as part of Newton System 500, when the survey has ascertained that there is no risk of water entering though the body of the slab. , CDM, Membrane

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 701-HB - High Build Epoxy Floor Coating
Two-component solvent free epoxy resin based floor coating developed to provide protective and decorative properties to concrete, steel and other substrates. The material is supplied as a two pack system comprising pre-weighed amounts of both the Base and Curing Agent. After mixing together, an easily applied chemical and abrasion-resistant finish is produced. , New Seal, Liquid Applied Membrane

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton 706-HB - High Build & Self-Smoothing Epoxy/Cement Coating
Newton 706-HB is a two-component epoxy and cementitous modified polymer coating suitable for the protection of concrete floors in demanding environments. , Newton, Liquid Applied Membrane

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton Basedrain - Cavity Drain Membrane Drainage Channel
Drainage System For Use With Newton System 500 – A range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Newton Sump System or safe drainage. , Basedrain, Conduit

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton Basedrain Adaptor
Newton Basedrain is the drainage system used most commonly within the Newton CDM, ‘Type C’, cavity drain waterproofing system. , Basedrain, Adaptor

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton Basedrain Corner - Drainage Channel Corner
Provides a sweeping corner for the drainage channel , Basedrain, Corner

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton Basedrain Inspection Port
Provides an access point to the perimeter drainage channel for maintainability , Basedrain, Inspection Port

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton Basedrain T Piece
The Basedrain T piece links the basedrain around the perimeter to floordrain running over construction joints within the basement slab/raft , Basedrain, T Piece

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton CDM 503 - Basement Waterproofing Membrane for Waterproofing of Existing and New Build Basements - 3 mm Cavity Drain Membrane for Basements
Newton CDM 503 is a BBA certified, high quality, 3mm cavity drain waterproofing membrane, for use within the Newton CDM System, our internally applied waterproofing system that also includes drainage and pumping systems.CDM 503 is suitable for waterproofing earth-retained walls and vaulted soffits and floors. It is guaranteed against deterioration for 30 years, with a life expectancy of the design life of the building (DIN 9001:2000), and supported by BBA Agrément Certificate 22/6357.CDM 503 is inert and non-polluting to drinking water, highly resistant to water, alkalines, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also rot-proof and resistant to bacteria, fungi and small organisms.Features and benefits:Does not require extensive and damaging preparation to the wall surfaceSpeed of installationCapable of delivering an environment to all levels within a Grade 3 environment to BS 8102:20223mm deep for applications where space is tightSuitable substrates:WallsFloorsVaultsTunnels High-density polyethylene (PE-HD) studded sheets

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Newton CDM 508 - Basement Waterproofing Membrane for Waterproofing of Existing and New Build Basements - 8 mm Cavity Drain Membrane for Basements
Newton CDM 508 is a high-quality cavity drain waterproofing membrane, supplied in a number of sizes and in 500g/m2 and 700g/m2 variants for use within the Newton CDM System, our internally applied waterproofing system that also includes drainage and pumping systems.CDM 508 is suitable for waterproofing earth-retained walls and vaulted soffits and floors. It is guaranteed against deterioration for 30 years, with a life expectancy of the design life of the building (DIN 9001:2000), and supported by BBA Agrément Certificate 22/6357.CDM 508 is inert and non-polluting to drinking water, highly resistant to water, alkalines, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also rot-proof and resistant to bacteria, fungi and tiny organisms.Features and benefits:Does not require extensive and damaging preparation to the wall surfaceSpeed of installationCapable of delivering an environment to all levels within a Grade 3 environment to BS 8102:2022Newton CDM 508 Membrane is available in the following variants:CDM 508 700g/m² (Code M1-7-48): 2.4m x 20m – 48m²CDM 508 700g/m² (Code M1-7-40): 2m x 20m – 40m²CDM 508 500g/m² (Code M1-5-48): 2.4m x 20m – 48m²CDM 508 500g/m² (Code M1-5-40): 2m x 20m – 40m²Suitable substrates - Walls:ConcreteBrickConcrete blockICF – With special longer fixing plugs- Soffits:Concrete – To fallBrick – Arched or vaulted- Floors:Concrete raft or slabNewton Fibran XPS 500-C closed cell extruded polystyrene insulation High-density polyethylene (PE-HD) studded sheets

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Newton CDM 520 eco Floor - Basement Waterproofing Membrane for Waterproofing of Existing and New Build Basements - 20mm Recycled Cavity Drain Membrane
Newton CDM 520 eco is a high quality and 100% recycled, 20 mm cavity drain floor membrane, for use within the Newton CDM System, our internally applied waterproofing system that also includes drainage and pumping systems.With its 20 mm deep stud profile, Newton CDM 520 eco is used within the Newton CDM System as a high drainage capacity floor membrane, and is generally specified where it is anticipated that there may be a risk of severe water penetration.Newton 520 eco is guaranteed against deterioration for 30 years, with a life expectancy of at least the design life of the building (DIN 9001:2000) and is supported by BBA Certification Number 94/3010.Newton 520 eco is inert and, therefore, non-polluting to drinking water, highly resistant to water, alkalies, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also impervious to root penetration, is rot-proof, and resistant to bacteria, fungi and other small organisms.Features and benefits: Third-party tested for long-term compressive load to ISO 25619-1 (2% compression over 50-years)Speed of installationMade from 100% recycled HDPEProvides vapour control and, when used with humidity control systems and is capable of delivering an environment to all levels within a Grade 3 environment to BS 8102:2022Resistant to rot, chemically aggressive groundwater, acids and alkalines, efflorescing salts and hydrocarbon contaminationProduct waste is recycled when returned to Newton Waterproofing by Newton Specialist Contractors High-density polyethylene (PE-HD) studded sheets

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Newton CDM BaseDrain & FloorDrain - Drainage System - Drainage System
Newton CDM BaseDrain and CDM FloorDrain is the drainage system used most commonly within the Newton CDM System – A range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Newton Basement Pumping System or safe drainage.The 18 mm holes drilled in both sides of the profile, as well as to the top surface, allows water from beneath the CDM Fibran XPS-500C insulation boards and within the spacer zone to enter the drainage channels more easily.CDM BaseDrain: Drainage conduit for the perimeter of the area to be waterproofed. Is situated at the base of the wall membrane.CDM FloorDrain: Drainage Conduit for collection of water at construction joint to the floor and to replace Basedrain at door thresholds. FloorDrain is also used to connect the perimeter BaseDrain to the sump.CDM BaseDrain Corner: Formed 90° corner.CDM BaseDrain T-Piece: Formed T for a 90° connection to FloorDrain from BaseDrain and for draining through engineering brick as an alternative to open perpendicular jointsJetting & access point: for inspection and maintenance access to the drainage system.CDM Basedrain Connectors: For connecting BaseDrain pieces. Floor channels

Published [04/04/2024]

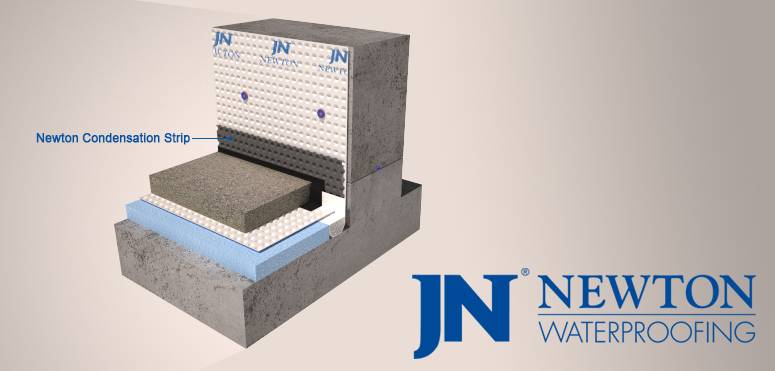

NEWTON WATERPROOFING SYSTEMS: Newton CDM Condensation Strip - Strip to Collect Condensation
At 250 mm high and with a diamond stud pattern to prevent interlocking of studs, Newton Condensation Strip is a quick and efficient alternative to using a strip of wall membrane to create the condensation gap. High-density polyethylene (PE-HD) studded sheets

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Newton Condensation Strip
Forms an 8 mm gap between the Basedrain perimeter drainage channel and wall membrane so that if condensation should form, it will be collected by the Basedrain and not pool on the floor, damaging finishes. , CDM, Condensation Strip

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton Fibran XPS 500-C - Closed-Cell Slotted Insulation Board
Newton Fibran XPS 500-C is a 50 mm deep, closed-cell thermal insulation board made from rigid extruded polystyrene foam (XPS). , CDM, Insulation

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton HydroBond 109-LM - Rubber Waterproofing Membrane
Radon-certified, flexible, single-component, cold-applied and seamless rubber waterproofing membrane used primarily for the external waterproofing of earth-retaining structures such as basements and foundation walls.HydroBond 109-LM is puncture resistant with elasticity of 850% and a 95% recovery memory. The membrane becomes fully engaged into the substrate to prevent water tracking and is suitable for all below ground and earth-retained structures, ranging from domestic basements to the largest civil engineering projects.HydroBond 109-LM is available in two variants: Medium Viscosity, for use in warmer temperatures, and Low Viscosity, for when it is cooler. HydroBond 109-LM is also a constituent product of the Newton HydroBond® System supported by BDA Agrément Certificate BAB 16-031/04/A and is accepted by the NHBC as a suitable waterproofing system for Type A Waterproofing to Grades 1a, 1b, 2 & 3 – BS 8102:2022.Surface preparation is required, as is protection after application - consult manufacturer for details.Features and benefits:Fully-bonded seamless membrane.Good elasticity with no shrinkage.Medium/Low Viscosity variants instantly raintight when sprayed with HydroBond 109-LM Catalyst.Primer not required for most substrates.Complete vapour barrier.Solvent free, non-toxic and odourless.Non-flammable – No VOCs.High radon gas resistance.Curing:Ready for next coat: At 5°C: After 24 hours; at 10°C: After 12 hours; at 15°C: After 2 hours; at 20°C: After 24 minutes; at 25°C: After 12 minutes.To be kept rain-free: At 5°C: For 24 hours; at 10°C: For 12 hours; at 15°C: For 1 hour; at 20°C: For 30 minutes; at 25°C: For 30 minutes.Ready for temporary foot traffic/ protection boards: At 5°C: After 24 hours; at 10°C: After 12 hours; at 15°C: After 2 hours; at 20°C: After 1 hour; at 25°C: After 1 hour.Ready for flood/ hosepipe test: At 5°C: After 48 hours; at 10°C: After 24 hours; at 15°C: After 4 hours; at 20°C: After 3 hours; at 25°C: After 2 hours.Fully cured: At 5°C: After 48 hours; at 10°C: After 24 hours; at 15°C: After 8 hours; at 20°C: After 5 hours; at 25°C: After 3 hours. Polymeric membranes

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Newton HydroBond 403 Plus - Pre-Applied External Waterproofing Membrane for Basement Waterproofing and Gas Protection - Waterproofing Membrane & Gas Barrier
Newton 403 HydroBond® is a high performance, self-healing, composite sheet membrane, available in two variants, with Newton HydroBond-GB adding ground gas resistance (in compliance with BS 8485:2015) as well as the exceptional waterproofing capabilities of the standard membrane. When fitted above the raft support or to wall formwork, the membrane locking fleece is fully encapsulated into the newly placed concrete, becoming fully-engaged to prevent water tracking. If the waterproof LDPE layer is punctured, the exposed hydrophilic coating expands, preventing water ingress, effectively sealing small holes that may be accidentally formed during fixing of the reinforcing steel or the placing and compaction of the concrete. Newton 403 HydroBond provides a complete waterproof envelope to the structure to achieve Type A (barrier) waterproofing suitable for Grades 1, 2 and 3 as defined by BS 8102:2009, and is suitable for all below ground and earth-retained structures from domestic basements to the largest civil engineering projects. Both variants can be used as part of the HydroBond® System in conjunction with Newton 108 HydroBond-LM, which is sprayed to the exposed walls of the basement after the temporary formwork is removed. Where space is tight, Newton HydroBond 109-LM can be applied by roller or brush or small airless spray machine. Newton 403 HydroBond can be used alongside other Newton products to provide a co-ordinated and combined approach to the waterproofing of the whole structure that includes protection against water ingress to the deck, through construction joints, through and around service entries and to movement joints. Correctly protected, the Newton HydroBond System will provide, under normal service conditions, a durable waterproof barrier for the life of the building to which it is installed; the expected lifetime of the building itself should be at least 60 years. The Newton HydroBond system is supported by BDA Agrément Certificate BAB 17-031/04/A and is accepted by the NHBC as a suitable waterproofing system for Type A Waterproofing to Grades 1, 2 & 3 according to BS 8102:2009.KEY BENEFITS • Agrément certificated and NHBC accepted waterproofing system • Full mechanical bond to concrete prevents water migration between membrane and structure • Hydrophilic layer provides self-healing of punctures to the membrane • Very flexible - Resistant to movement and fissures in substrates • The HydroBond System completely encapsulates the structure • Excellent resistance to the high alkalinity of concrete • Third-party test certification for radon, carbon dioxide and hydrocarbon gasesTYPICAL APPLICATIONS As a continuous membrane to permanent raft and wall formwork such as the raft blinding and piled walls of reinforced concrete earth-retained structures.SUITABLE SUBSTRATE RAFT OR SLAB • Concrete blinding • Compacted type 1 hardcore • Compacted sand The following can be placed above the blinding or hardcore prior to the installation of 403 HydroBond: • Void former • Clay heave board • Closed-cell flooring grade insulation • Newton 410 GeoDrain WALL FORMWORK • Existing structure • Secant or contiguous concrete piles • Metal sheet piles • Diaphragm walls • King post wall • Sufficiently stable ground such as clay or chalk • Temporary timber shuttering/formwork Plastics sheets

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Newton HydroTank 301-EP Metal Construction Joint Waterbar - Construction Joint Waterbar
Coated metal waterbar system used for sealing kickerless construction joints within retained concrete structures. It features an adhesive, reactive polymer coating on one of its sides which creates a permanent watertight seal that works immediately.Installation is quick and easy with the waterbar fitted in place to the reinforcement steel with special clips so that after the placement of the concrete, the waterbar is fully embedded within the two adjoining elements, completely blocking the passage of water through the joint.Because HydroTank 301-EP Metal Waterbar is not fixed to one of the concrete elements as is the case with conventional waterbars, the forming of a kicker is not necessary. Where the walls are formed above a kicker joint, use 315 Polymer Waterbar.Newton HydroTank 301-EP Metal Waterbar is certified to resist water pressure of up to 5 bar (50m), and is resistant to all types of naturally occurring ground water types.Features and benefits:Immediate protection against water pressure – does not need to swell to be effective as is the case with hydrophilic waterbars.Extremely high bond between the granular coating and the surrounding concrete ensuring that water cannot pass even where the concrete has slightly shrunk during curing.No kicker or rebate required, reducing site labour costs.100% waterproof up to 5 bar of water pressure.Preformed corner parts for quick site installation.More durable than conventional waterbars – not easily damaged or moved by the placing or compacting of concrete.Can be installed in any weather and at any temperature. Coated metal waterstops

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Newton Titan Pro - Sump Chamber
The unique sump shape together with a choice of inlet and outlet positions allow for connections in and out of the chamber to be made to either a side wall or to a corner. , CDM, Pump System

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Newton Titan-Pro - Basement Waterproofing Sump Pump System - Cavity Drain Pumping System
Specialist pump system that can be used with single pumps, twin pumps and twin pumps with twin discharge lines for greater pump efficiency.The adjustable neck allows for the sump to be installed at a fixed height relative to the slab so that the connection in from the Newton drainage system and the pump discharge line are made above the concrete and always at the same height relative to the slab or raft.The unique sump shape, together with a choice of inlet and outlet positions, allow for connections in and out of the chamber to be made to either a side wall, or to a corner.Features and benefits:Manufactured from robust high-density polyethylene (HDPE) and should provide a chamber for the lifetime of the building.Compatible with a large number of Newton NP and CP clean water pumps.Fully built system includes all internal pipe and pipe fittings ready for 50 mm or 63 mm rising main.One-way valve for each pump included.Two quick-release couplings per pump for easy installation and removal for servicing.Adjustable neck ensures that the lid is always at the correct height regardless of floor finishes.Newton High Water Level Alarm included with pump and pipe kits (Codes TP3 - TP47).Supplied with sealed and locked recessed lid. High-end finish lids and frames are available.Flat areas to the side of chamber are ready for wall flanges to receive incoming 110 mm drainage pipes. Wall flanges are available.Large foot to base of chamber to prevent flotation.Anti-drip system available for the inside of the chamber.Wet-install kit available that includes pressure release valves and tremie pipe for installations where water is entering the excavation.Pump:The Titan-Pro pumping system can be supplied with single or dual automatic or manual pumps, with single or dual pipe discharge lines.Manual pumps must be matched to the Newton Pump Controller or Newton Control Panel-Pro.Automatic pumps are supplied with Vertical Float Switches that allow for very flexible pump switching, allowing for adjustment of the ON and OFF positions of each pump, as well as the overall height of the pump switching. Please consult the manufacturer for further information.Newton can supply the sump system as a whole or can supply the sump chamber and the fittings required for sump installation, separate to the pumps and High Water Level Alarm.The internal pipe and fittings are included. External pipe and fittings in either 50 mm or 63 mm can be ordered as required. Private packaged pumping stations

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Seamless Rubber Waterproofing Membrane Newton HydroBond 108-LM for External Waterproofing of Basements - Seamless Rubber Waterproofing Membrane
Normally specified as part of the HydroBond System in conjunction with HydroBond 403 Plus. The membrane can however also be used on its own, terminating to raft or strip foundations.Extremely puncture resistant, with high elasticity and a 95% recovery memory, the membrane becomes fully engaged into the concrete surface to prevent water tracking and is suitable for all below-ground and earth-retained structures, ranging from domestic basements to the largest civil engineering projects.HydroBond 108-LM can be used together with HydroBond 403 Plus to provide a complete waterproof envelope to the structure, forming a Type A (barrier) waterproofing solution suitable for Grades 1, 2 and 3 as defined by BS 8102: 2022.Surface preparation is required, as is protection after application - consult manufacturer for details.Features and benefits:Cold applied fully-bonded seamless membrane.Very elastic with no shrinkage.No primer required.Very quick to apply – up to 1000 m2 per day.Cost efficient – The low membrane price coupled with high application rates = a very low installed rate per square metre.Solvent free, non-toxic and odourless.Non-flammable – No VOCs.Chemically resistant.Highly radon resistantCuring:Ready for next coat (over joints): After 30 minutes.To be kept rain-free: For 2 minutes.Ready for temporary foot traffic/ protection boards: After 30 minutes.Fully cured: After 30 minutes. Polymeric membranes

Published [04/04/2024]

NEWTON WATERPROOFING SYSTEMS: Victron Power Converter - Pumping Power Interruption System
The Victron range of Inverter/Chargers provide advanced solutions to ensure that Newton Pumping Systems continue pumping during power interruption by inverting 12V DC power from a battery (or multiple batteries) to clean and efficient 230V power. , CDM, Power Converter

Published [02/12/2021]

NEWTON WATERPROOFING SYSTEMS: Waterproof Tanking Membrane for the protection of below ground structures with Newton HydroCoat 107 Elastic 2K - Cementitious Waterproofing Membrane
Cementitious coating for the waterproofing and protection of concrete and masonry. Can be spray-applied so ideal for large projects. Suited to the waterproofing of reservoirs, tunnels, water tanks, basements, podium decks, flat roofs and balconies.Features and benefits:Pre-packaged materials easily mixed on site.Tough, flexible coating which maintains its elastomeric properties even under immersed conditions to accommodate movement in cracks.Good abrasion and very high resistance to freeze/ thaw cycles and de-icing salts.Excellent adhesion to sound prepared concrete and masonry substrates, as well as steel.Dense matrix offers low permeability to water, even at 10 bar pressure, and very high diffusion resistance to carbon dioxide gas.Suitable for positive and negative waterproofing of earth-retaining structures as well as covered decks.A 2 mm coat provides the equivalent to 135 mm of good quality concrete cover.Can be applied to damp substrates in temperatures down to 5°C.Water-based product, free from hazardous solvents, ideal for use in confined spaces. Non-toxic when cured.Correctly prepared suitable substrates include concrete of at least 20 kN, steel, masonry and screed.Can be applied via squeegee, roller, airless spray, pin leveller, brush or trowel.CE marked and manufactured in accordance with EN 1504-2: 2004.Guaranteed to resist weathering for up to ten years.Curing:Ready for next coat: At 5°C: After 8 hours; at 10°C: After 7 hours; at 15°C: After 6 hours; at 20°C: After 5 hours; at 25°C: After 3 hours.To be kept rain-free: At 5°C: For 5 hours; at 10°C: For 4 hours; at 15°C: For 3 hours; at 20°C: For 2.5 hours; at 25°C: For 2 hours.Ready for temporary traffic/ protection boards: At 5°C: After 72 hours; at 10°C: After 72 hours; at 15°C: After 72 hours; at 20°C: After 48 hours; at 25°C: After 48 hours.Ready for flood/ hosepipe test: After 7 days (at all temperatures).Fully cured: After 28 days (at all temperatures). Cementitious tanking mortars

Published [04/04/2024]
