POWER ACCESS SYSTEMS LTD
Suppliers of: roof protection system, suspended cradles, maintenance cradles, powered cradles, roof gantries, travelling ladders, fall arrest systems, fall restraint systems, mansafe safety wires, roof safety systems, roof edge protection, access systems,

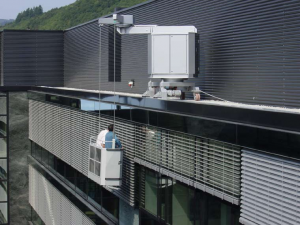

Power Access Systems Ltd specializes in the design and manufacture of high quality, custom designed suspended cradle systems (BMUs), traveliing ladders & Gantries, Safety wire systems and Cladding & Glazing installation & maintenance solutions to meet access problems on the most prestigious buildings.
Through our associations with PL-Access (Switzerland), Kaeufer (Germany), NorAcon (Norway) and Roodsafe (UK) we can offer efficient, high quality permanent solutions to most access and safety problems.
Systems can range from:
- Fixed safety harness anchors
- ’Mansafe’ safety wire systems
- Kaeufer travelling ladders and gantries
- NorAcon monorail systems
- Sophisticated fully power operated suspended access equipment
All in accordance with the requirements of the latest British and European Standards.
We have supplied the slimmest of cradle units for operation in restricted passages to machines with a reach in excess of twenty metres as well as installation systems and other systems for special applications.
All suspended access systems comply with or exceed the requirements of BS EN 1808 Safety Requirements for Suspended Access Equipment and the recommendations of BS6037-1: and BS6037-2:; Codes of Practice for Permanently Installed Suspended Access Equipment.
Although we supply access equipment incorporating ‘state-of-the-art’ technology the result is a system that is a long-term asset to the building it serves both from a visual standpoint and in its operating efficiency.

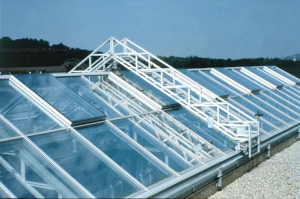

We have supplied custom-designed travelling ladders and gantries in many shapes and sizes with spans in excess of 20 metres.
Special features such as an integrated suspended cradle system to provide access to facades below a gantry, a raised platform to reach areas above a gantry and facilities for glazing replacement can be incorporated. All units comply with the latest British and International Standards including: EN 1808:2015 – Safety Requirements on Suspended Access Equipment BS 6037-2:2004 – Code of Practice for Permanently Installed Travelling Ladders and Gantries.
Cladding & Glazing Installation
We have supplied bespoke, rugged systems for the installation of cladding and glazing on new and refurbished buildings. Cladding panels weighing up to 1500kg have been catered for.
Two types of installation systems are possible, one based on temporary or permanent monorails and the other based on floor cranes. In both cases remote operation ensures safe and efficient operation to meet tight construction deadlines.

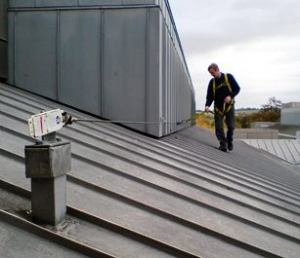

Roof Safety Protection systems
Power Access Systems has been an installer of cable based fall-arrest systems since 1988.
We also install bespoke walkways, fixed ladders and other means of improving access for maintenance.
Systems comprise horizontal and vertical ‘Mansafe’ safety wires as well as fixed ‘Pushlock’ safety harness anchors, ‘Hadrian’ safety rails, window cleaner’s eyebolts and deadweight anchors.
Power Access Systems has been trading continuously in the UK for more than thirty years and have successfully completed many contracts. A selection of our completed projects can be seen on our website at www.poweraccess.co.uk.
Following installation we offer a full after-sales programme of maintenance and testing in accordance with the latest British and European Standards.
As well as manufacturing, installing and servicing access and safety systems we participate fully in the British and European committees responsible for the drafting of new and revised standards that affect our industry.
POWER ACCESS SYSTEMS IN LONDON DOCKLANDS
POWER ACCESS SYSTEMS IN LONDON DOCKLANDS
It is hard to believe that the commercial development of the Canary Wharf docks in London started almost 40 years ago. As a result, some buildings are now beginning to show signs of age and items of plant are having to be replaced.
Power Access Systems was awarded a contract to remove a suspended cradle system (BMU) from the building at South Colonnade and replace it with a new machine.
The contract was not as straightforward as it may seem however. The BMU has to operate in a restricted passageway and the cradle has to be passed through a series of opening louvre doors and features on the façade so the design had to take all these factors into account.
The height of the building is approximately 65 metres so a large mobile crane was required for the removal and delivery. The crane could not be erected until well after midnight as it’s fly jib needed to oversail the Docklands Light Railway so this could only start when power to the DLR had been switched off. Time was of the essence as lifting had to be completed by about 4am to give sufficient time for the crane to be decommissioned before power to the DLR was restored.
Thanks to good teamwork between Canary Wharf Management, Bronzeshield and ourselves and the weather being kind on the night the lifting operations were completed on time and without problems.
The design of the new suspended cradle system comprises a fully power operated Building Maintenance Unit (BMU) running at roof level on the original galvanised steel twin track system. This BMU provides safe and efficient access to the facade to enable the building to be maintained to the high standards expected. This is one of many bespoke access systems that Power Access Systems has installed since 1983.
Power Access Systems Ltd, Crawley, RH10 5NY
T. 01293 561892
admin@poweraccess.co.uk
www.poweraccess.co.uk
Power Access Systems Goes Back To University
Power Access Systems Goes Back To University

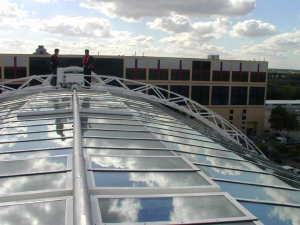

When the University of Manchester decided to build the Alan Gilbert Learning Commons Building their contractor, Wates Construction, turned to Power Access Systems to supply and install a bespoke travelling gantry system to provide access to the high-level glazed roof areas.
The £24m Learning Commons building has been designed to give students a focal point for learning, offering a stimulating and comfortable 24/7 environment for study. The world-class 21st century study space boasts more than 1000 flexible study spaces and an inspiring range of equipment and furnishings for individual and group study.
The travelling gantry provides safe and efficient access to the vertical and sloping glazing over the open plan central area to enable the building to be maintained to the high standards expected by a leading University.
This is one of many bespoke access systems that Power Access Systems has installed since 1983.
