TECHNAL LTD

Hydro Building Systems UK Ltd
Severn Drive
Tewkesbury
Gloucestershire GL20 8SF

Tel: 01684 853 500
Fax:

Company Logo

These files are provided by the manufacturer. While Building Products Index takes every care to ensure the information is correct and up to date, we cannot be held liable for any out of date or incorrect information in them. You should check with the supplier before specifying or purchasing products.

TECHNAL LTD: AMBIAL - Sustainable Aluminium Folding Door - Aluminium folding door
The AMBIAL folding door is durable and easy to use, offering panoramic views, flooding rooms with natural light and blurring the boundaries between inside and out. It can be fully opened inwards or outwards and can incorporate up to ten leaf configuration with a maximum height of 3 m for a 12 m wide opening.All finishes have been designed with attention to detail to offer a harmonious appearance when open or closed. The frames are flush fitting with slim, well-balanced profiles. Upper and lower rollers and fixings are covered to provide a uniform look, even when the system is open.Features and benefits:Folding door and corner folding door variations.Drainage is concealed to ensure a smooth, flush design.Large sizes offer a panoramic view.Durable and easy to use.Can incorporate up to 10-leaves with a maximum height of 3m - providing an opening of 12m wide.Guaranteed thermal and acoustic performance as well as high level weather and water resistance.Completely flush appearance when closed for clean linesExclusive ultra-flat handle and key.Easy to operate thanks to the upper and lower rollers, foldable pull handle and optional exterior handle on the service leaf.Flush-fitting threshold available with the double brush option.1 or 2-leaf door can be created to maintain visual harmony.Sustainability Information AMBIAL is made with Hydro CIRCAL 75R aluminium - the prime-quality alloy that's made with at least 75% recycled, end-of-life materialBy choosing TECHNAL products that are made with Hydro CIRCAL 75R - you prevent 85% of CO2 emissions from entering the atmosphere (when compared with the CO2 emissions from the global average for primary aluminium production)AMBIAL is supported with a dynamic EPD which enables you to demonstrate the environmental impact of each and every project you work with us on Sliding folding doorsets

Published [04/04/2024]

TECHNAL LTD: Ambial, the folding door
75 mm module with thermal break of 30 mm High end folding door: Big dimensions up to 12 m wide and 3 m high and weight up to 150kg per leaf High performances according to the option choosed Sleek design: In closed or opened position. Patented modele Profiles are flush and the visible elements are subtle and well-balanced. Technal exclusive handles, including key , Windows & Doors, Doors

Published [24/04/2023]

TECHNAL LTD: GEODE MX 52 Aluminium Curtain Walling System
MX52:Aluminium curtain walling system for use with a variety of curtain walling applications using the same mullion and transom grid, enabling variations to the external appearance of the building, with the construction benefitting from one fully integrated system.MX52 Visible Grid (32 mm):Fully capped curtain wall. Aluminium curtain walling system for use with a variety of curtain walling applications using the same mullion and transom grid. Complete with differing face caps and external variations, so enabling variations to the external appearance of the building - while benefitting from one fully integrated system.MX52 Trame:A design option, allowing specifiers to spotlight a vertical or horizontal emphasis across the building envelope.Projecting caps may be used to add depth to the facade whilst slender face trim gaskets, which are flush with the front face of the infill, soften the corresponding vertical or horizontal sections.MX52 Acoustic (42 mm):An MX52 design option, allowing specifiers to incorporate thicker infills for thermal, barrier or acoustic compliance. Can accommodate up to 42 mm glazing.MX52 Acoustic Visible Grid:Fully capped curtain wall. Aluminium curtain walling system for use with a variety of curtain walling applications using the same mullion and transom grid. Complete with differing face caps and external variations, so enabling variations to the external appearance of the building - while benefitting from one fully integrated system.MX52 Trame Horizontale Acoustic:A design option, allowing specifiers to spotlight horizontal emphasis across the building envelope.Projecting horizontal transom caps add depth to the facade whilst slender face trim gaskets, which are flush with the vertical front face of the infill, soften the corresponding verticals.MXm 52: ToggleAn MX52 design option, allowing specifiers to choose a flush external facade. Or add emphasis via extended capping to highlight individual elements.Projecting caps may be used to add depth to the facade whilst a slender face trim gasket or a flush silicone seal, which are flush with the front face of the infill, soften the corresponding vertical or horizontal sections.Features and benefits:Facet up to ±10° using standard cast cleat and rotation spigot. Up to ±20° using adapters. Bespoke sections for 90° corners. Stick system for easy transportation and installation, zone drained and pressure equalized to ensure performance and drainage efficiency. PVC thermal breaks.Projecting face caps may be used to add depth to the facade. Stick curtain walling systems

Published [04/04/2024]

TECHNAL LTD: Luméal GA (W)
Concealed opening. Large dimensions - Maximum sizes up to W: 4 ,50 m - H: 2 ,70 m - Maximum weight per leaf: 300 kg with triple stainless steel rollers Thermal performances - Up to Uw = 1,2 W/m².K, Sw = 0,45 and TLw = 0,64 Double glazing with Ug = 1,0 W/m2.K + Insulation spacer with dimensions W: 4,50 m - H: 2,70 m. Design - Lighter aluminium weight (-35%) with only 68mm and 77mm of visible aluminium - Slim central meeting stile - Concealed drainage for all applications Accessibility and comfort - Device adapted for easy access. - Flat threshold fitted into the floor or access ramp profile have been developed to improve user’s comfort - Motorized option to make easier opening/closing of large dimensions and heavy frames Locking mechanisms - Several handle options with a refined design, non-locking or 2-point and 3-point locking. , Windows & Doors, Windows

Published [24/04/2023]

TECHNAL LTD: MX Acoustic Curtain Walling
The enlarged glazing infill up to 42 mm offers greater acoustic and thermal protection. Can beused in environments where additional performance is required (city centre apartments, hospitals, buildings close to airports and railways lines, etc.). Visible grid or Trame Horizontale. Flat or faceted curtain walling. For visible grid; 10 degrees for Trame Concealed opening vent. The concealed SSG projecting top-hung opening frames can be supplied for use with 36 mm and 42 mm glazing. System compatibility. The profiles allow Technal’s window and door systems to be integrated into curtain wall structures. Reinforced thermal insulation is provided through a multi-chamber spacing gasket and partitioning tabs. Thermal insulation with 42 mm triple glazing Ug = 0.6 W/m²K: - Fixed curtain walling with 80% glazing (opaque spandrels panel) Ucw = 0.9 W/m²K. - Fixed wall cladding with 50% glazing (80 mm insulating panel, Up = 0.35) Ucw = 0.8 W/m²K. Air, water and wind resistance in accordance with European and CWCT standards. , Curtain Wall, Curtain Wall

Published [24/04/2023]

TECHNAL LTD: MX Concealed Vent Window System
Concealed opening vents. The projecting top-hung, parallel, tilt-turn or emergency access opening vents provide natural ventilation whilst maintaining the aesthetic lines whatever the appearance of the external façade. , Curtain Wall, Curtain Wall

Published [24/04/2023]

TECHNAL LTD: MX Sloped Curtain Walling
Uniform appearance. These solutions offer designers the possibility to create inclined roofs, vaults, atria and pyramids that are fully compatible and visually consistent with GEODE vertical façade. GEODE Visible grid: Specially designed cap. A special cap for the horizontal and vertical sections reduces the accumulation of water on the inclined sections. GEODE Trame Verticale: Minimal strain. The vertical caps and a silicone seal with pressure blocks on the transoms prevent deflection of the glass under negative wind pressure. Glazing. The double glazed units are manufactured using structural silicone. Incline. Minimum slope: 10° for single glazing 15° for double glazing. The 8 mm to 32 mm infills are held in place with horizontal and vertical pressure plates for the GEODE Visible grid system and by vertical pressure plates and horizontal pressure blocks for the GEODE Trame Verticale. Design details. The rafters and transoms are square cut and assembled using the penetrating transom principle. , Curtain Wall, Curtain Wall

Published [24/04/2023]

TECHNAL LTD: MX Toggle Curtain Walling
The GEODE mechanical structural glazing curtain walling is a technical design enabling the creation of fully glazed façades without attaching aluminium frames to the glazing. As an alternative to SSG (Structural Sealant Glazing) which uses traditional silicone sealant, the glazing for the fixed and opening sections is attached to the aluminium frame mechanically using special aluminium supports. From the outside, only the glazing and a thin gasket are visible. - Flat or faceted upto 10 degrees. - Concealed opening vents projecting top-hung or parallel. Glass panels: - Fixed frames: W 3.00 m x H 2.00 m - Max. weight 240 kg Vents: - projecting top-hung 130 kg - Parallel 150 kg. Glazing from 36 to 42 mm for the transparent sections of the fixed and opening frames. Spandrel panels with 6 or 8 mm glazing or insulating panels from 40 to 120 mm. , Curtain Wall, Curtain Wall

Published [24/04/2023]

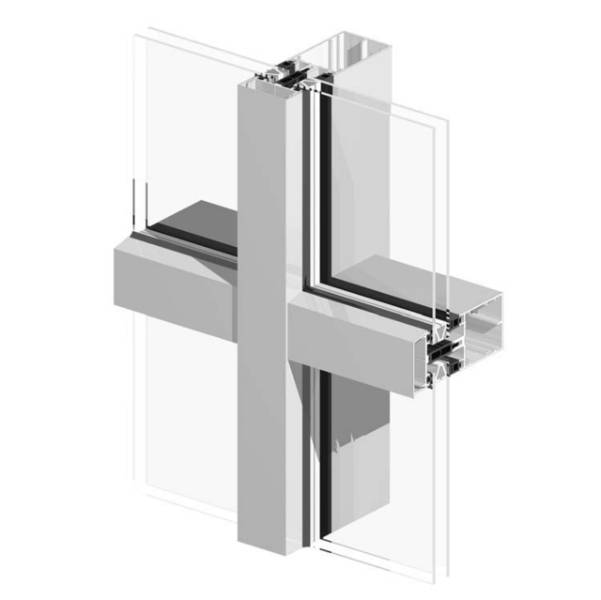

TECHNAL LTD: MX Trame Curtain Walling
Distinctive design details. GEODE Trame is an additional design option offering the option of highlighting the vertical or horizontal profiles on the building’s envelope. Common structure with 52 mm-module profiles. Range of profile depths: from 4.53 cm4 to 2133 cm4 to meet the needs of each project. Design. Choice of aluminium caps to highlight the external design of the façade. Additional acoustic and thermal performance. GEODE Acoustic is an additional option for GEODE Visible grid, developed for projects requiring enhanced acoustic and thermal performances with glazing up to 42 mm. Thermal insulation with glazing Ug = 1.3 W/m²K : - Fixed curtain wall with 80% glazing (opaque spandrel panel) Ucw = 1.6 W/m²K. - Fixed curtain wall with 50% glazing (80 mm insulating panel, Ucw = 0.35) Ucw = 1.2 W/m²K. Air, water and wind resistance in accordance with European and CWCT standards. , Curtain Wall, Curtain Wall

Published [24/04/2023]

TECHNAL LTD: MX Visible Grid Curtain Walling
Flat or faceted façades. Glazing available from 6 mm to 32 mm for flat or faceted curtain wall up to 20°. Optimised distribution of loads to prevent unacceptable deflection of the transoms and to allow the use of heavy and large glazing units. Maximum weight of 400 kg (assembled using a connector and antirotation spigot). Common structure with 52 mm-module profiles. Range of profile depths: from 4.53 cm4 to 2133 cm4 to meet the needs of each project. Design. Choice of aluminium caps to highlight the external design of the façade. Additional acoustic and thermal performance. GEODE Acoustic is an additional option for GEODE Visible grid, developed for projects requiring enhanced acoustic and thermal performances with glazing up to 42 mm. Thermal insulation with glazing Ug = 1.1 W/m²K : - Fixed curtain wall with 80% glazing (opaque spandrel panel) Ucw = 1.4 W/m²K. - Fixed curtain walling with 50% glazing (80 mm insulating panel, Up = 0.35) Ucw = 1.1 W/m²K. Air, water and wind resistance in accordance with European and CWCT standards. , Curtain Wall, Curtain Wall

Published [24/04/2023]

TECHNAL LTD: Soléal FY 55 (CW + W)
Design - A minimalist opening frame with “clip-on trim” creating a contemporary feel - A visible opening assembly purveying opulence and high quality - Concealed drainage for discrete water removal from all configurations of opening as well as fixed frames - Flashings available in different shapes and styles Multiples configurations - Fixed casement - 1 and 2 leaf - Integrated or stacked composite assemblies with transom or side lights - Projecting top-hung casement Closure systems and security - Various combinations are available up to 6-point with or without key locking systems - Handles centred on the central mullions of 2-leaf casements reduced to 66 mm (minimal opening frame) and 116 mm (visible opening frame) are available as an option - The Technal-exclusive handles are available for all configurations and ensure style consistency regardless of the type of opening system and can be adapted for use on doors and sliding systems - Windows subjected to forced entry delay tests achieving a score of RC2 in accordance with the EN-1627-30 standard. Optimised thermal loss values Uw up to 1.2 W/m².°K, Sw =0.41 and LTw = 0.54 with triple glazing (Ug = 0.6 + warm edge) Very good acoustic performances up to 40dB (RA,Tr) of acoustic attenuation. Test on window with 44.1/20/12 glazing , Windows & Doors, Windows

Published [24/04/2023]

TECHNAL LTD: Soléal FY 65 (Doors)
Several versions are available to meet all your projects’ requirements: - Minimal: a minimalist opening frame with fine and subtle lines. - A minimalist opening frame with “clip-on trim” creating a contemporary feel. - A visible opening frame, for a stylish and high quality finish. - Option of concealed fittings for a minimalist design and option of large sizes (up to 2.5 x 1.4m and 160kg). Concealed hardware reduces risk of damage and injury - a safer choice for schools and health and custodial premises. Concealed drainage for invisible water removal from opening as well as fixed frames. Flashings available in different shapes and styles. The thresholds used on SOLEAL balcony doors ease access whilst ensuring optimum weather tightness. , Windows & Doors, Doors

Published [24/04/2023]

TECHNAL LTD: Soléal FY 65 (Windows)
Several versions are available to meet all your projects’ requirements: - Minimal: a minimalist opening frame with fine and subtle lines. - A minimalist opening frame with “clip-on trim” creating a contemporary feel. - A visible opening frame, for a stylish and high quality finish. - Option of concealed fittings for a minimalist design and option of large sizes (up to 2.5 x 1.4m and 160kg). Concealed hardware reduces risk of damage and injury - a safer choice for schools and health and custodial premises. Concealed drainage for invisible water removal from opening as well as fixed frames. Flashings available in different shapes and styles. Multiple configurations - Fixed lights. - 1 and 2 leaves. - Composite and ribbon with transom or side lights. - Projecting top-hung. - Parallel opening. - Horizontal and vertical pivot (visible or concealed pivot available). - Tilt/slide. Optimised thermal loss values up to 0.9 W/m².°K, Sw =0.41 and LTw = 0.54 with triple glazing (Ug = 0.5 + warm edge) Very good acoustic performances up to 43 dB (RA, Tr) Test on window with 88.1/-20/-66.2 sound-proof glazing , Windows & Doors, Windows

Published [24/04/2023]

TECHNAL LTD: Soléal FY 65 composite (W/D)
Several versions are available to meet all your projects’ requirements: - Minimal: a minimalist opening frame with fine and subtle lines. - A minimalist opening frame with “clip-on trim” creating a contemporary feel. - A visible opening frame, for a stylish and high quality finish. - Option of concealed fittings for a minimalist design and option of large sizes (up to 2.5 x 1.4m and 160kg). Concealed hardware reduces risk of damage and injury - a safer choice for schools and health and custodial premises. Concealed drainage for invisible water removal from opening as well as fixed frames. Flashings available in different shapes and styles. Multiple configurations - Fixed lights. - 1 and 2 leaves. - Composite and ribbon with transom or side lights. - Projecting top-hung. - Parallel opening. - Horizontal and vertical pivot (visible or concealed pivot available). - Tilt/slide. Optimised thermal loss values up to 0.9 W/m².°K, Sw =0.41 and LTw = 0.54 with triple glazing (Ug = 0.5 + warm edge) Very good acoustic performances up to 43 dB (RA, Tr) Test on window with 88.1/-20/-66.2 sound-proof glazing , Windows & Doors, Windows

Published [24/04/2023]

TECHNAL LTD: Soléal GY 55 (W)
Large sizes - The design is suitable for large sizes, taking greater advantage of available daylight - Sizes up to W 4,3 m x H 2,6 m with high inertia mullions in a 2-leaf frame with a maximum weight of 200 kg per leaf Thermal, weather and acoustic performance - SOLEAL sliders are designed to follow changes in the market: French 2012 standard, air permeability criteria for low consumption buildings, and acoustic requirements Multiple applications - 2, 3 and 4 tracks - From single-track sliding-sash pocket window to 3-track pocket window - From 2- to 4-track internal or external corner solution - From 2- to 3-track internal or external corner pocket window solution - Composite frames and pocket windows - Special frame for direct surface fitting to existing joinery - Cladding (flashings, sills and architraves) as for SOLEAL doors and windows Aesthetic design - Simple form and slender frames - Discreet operating mechanism - Minimalist-style strip reinforcer which may be enhanced with decorative profiles (Technal patent) - Concealed drainage with invisible water evacuation for all applications , Windows & Doors, Windows

Published [24/04/2023]

TECHNAL LTD: SOLEAL Next 75 Sustainable Aluminium Door - Aluminium Thermally Broken Door
The SOLEAL Next door has been created to offer a range of solutions to cover the different needs for safety, comfort and building management. It is available in many applications, including, stand-alone or with fixed field, glazed or with overlapping panel, push pull, façade integrated, hinged, and low or barrier free threshold. SOLEAL Next offers effective thermal, acoustic and weather performance, all complying with the highest international standards. It is also the greener option for projects, created with a circular economy in mind. It is made with 75% recycled materials and is 100% recyclable at the end of its life.SOLEAL Next combines aesthetic design with a large choice of colours and accessories, as well as concealed elements and hardware to bring elegance and modernity for new or renovated building projects.Features and benefits:Modern, contemporary aesthetic.High performance levels for weather, thermal and acoustic performance.Numerous opening possibilities available - all from one modular system.75 mm module.Larger dimensions available with a height of up to 3 m for larger glazed expanses.Infill weight up to 250 kg.Endurance tested for heavy traffic (up to 2,000,000 cycles).Acoustic insulation up to 43 dB.Burglary resistance up to RC3 and PAS-24 Security certified.Security glazing beads for glass pane installation from the outside.Concealed locking sensors for building management.Concealed hardware for a smooth aesthetic.Wide choice of frame and vent designs.PVC-free components.Optional concealed hardware and other elements for an elegant and modern look.Exclusive design handles from the EXCLUSIVE® handles collection.Large choice of colours and accessories.Available as a stand-alone door or with a fixed field.Facade integration .Compatible with TENTAL facade, and SOLEAL Next window ranges.Under certification to obtain Cradle to Cradle® label.Low CO2 footprint.Sustainability Information:SOLEAL Next is made with Hydro CIRCAL© aluminium - made with at least 75% recycled end-of-life aluminiumPVC-free componentsDynamic EPD available on TechDesignMade with at least 75% recycled material100% recyclable at the end of its life Aluminium doorsets

Published [04/04/2024]

TECHNAL LTD: SOLEAL Next 75 Sustainable Aluminium Window - Aluminium Thermally Broken Window
SOLEAL Next casement is available in visible and minimal design, open-in and open-out to adapt to all types of architectures. There are multiple applications, shapes and colours and provides high performance levels for weather tightness, thermal, acoustic and sustainability complying with most international standards.Features and benefits:Available in open-in and open-out.Wide range of profiles.Concealed hardware.Numerous opening possibilities.Single or dual colour; possibility for differing finishes internally (eg. RAL colour) and externally (eg. anodized).Drained and ventilated glazing; EPDM & EPDM foam gaskets.Multi-chambered polyamide thermal breaks, mechanically jointed.Trickle ventilator adaptors.Doc M compliant thresholdExceptional levels of weather performance and thermal insulation.Burglar resistance up to RC3 and PAS24.Secure multipoint locking.Motorized opening and locking sensors.Under certification to obtain Cradle to Cradle® label.Less CO2 footprint. Aluminium window units

Published [04/04/2024]

TECHNAL LTD: Soléal PY 55 (D)
Three opening options to meet your project needs: - Single action, hinged. - Tube - bulb stile. - Double action, pivot. - Technal exclusive design push-pad handle. - Concealed drainage at threshold, bottom rail and mid rail. - Slim clamped hinges: 20-mm visible face for two- and three-part hinges. - Fittings readily applied across the offer. - Integrated door closer: 90° hold-open. - Residential and commercial thresholds - Wide choice of locks. - Doors with 3-part hinge Class RC3: burglar resistance level 3 to EN-1627-30. , Windows & Doors, Doors

Published [24/04/2023]

TECHNAL LTD: STII High Traffic Aluminium Commercial Door - Door
The Stormframe STII High Traffic aluminium door provides the ideal solution for a wide range of commercial applications. Since launch, it has been recognised as an exceptional product in terms of performance and fabrication.System features of the Stormframe STII aluminium door:PAS24:2012 and 2010 Equality Act CompliantDesigned to be used alongside the Dualframe 75 Si Window System and the Elegance 52 Curtain Wall system to allow seamless integration of multiple systems within a single projectEach hardware option is specifically designed to fit easily within frame and door profiles including:Multipoint lock with lever / lever handlesElectromagnetic locksPanic exit devicesSingle point locksElectric strikesDesign features of the Stormframe STII aluminium door:Flexible position fixing plate within the stile which securely fixes hardwareDedicated pocket filler maintains a quality finish to door edgesDoor stile end mouldings provide improved finish and allow a continuous seal across the bottom of the doorAvailable with dual colour option Aluminium doorsets

Published [04/04/2024]

TECHNAL LTD: TECH3D - Configurator for REVIT & ARCHICAD Library
Tech3D® is an innovative and simple sketching tool which has been specially designed for architects and specifiers, saving time to produce 2D, 3D drawings and 3D renders for architectural aluminium façade designs. They can be integrated in your BIM project. , Curtain Wall, Curtain Wall

Published [24/04/2023]

TECHNAL LTD: Technal CD Doors
The CD Door is a heavy duty door solution for use in busy public places and combines lasting resistance to wear with effective security and protection against vandalism. This is a robust system that is ideal for secondary school applications and entrances to public buildings such as airports, offices and shopping centres.The CD system is available in hinged, pivoted and sliding configurations, and has a number of special features to enhance its weather performance, safety and security.This download is for the CD Commercial Door Component.Rev 02 - Contact details updated Metal doorsets

Published [29/07/2016]

TECHNAL LTD: Technal Concealed Vent Window System
Technal concealed vents. There is the option of concealed opening vents in a variety of configurations for use with the Technal MX range of curtain walling.This download is for the Concealed Vent Window Component.Rev 02 - Contact details updated External window systems

Published [29/07/2016]

TECHNAL LTD: Technal FY55 Window Door Systems
Please Note: Not available in the UK, please contact Technal UK for assistance.Soleal FY55 is a global system of modular sections with thermal breaks for the construction of windows and balconies. The FY55 allows for fully insulating joinery sets that integrate all kinds of openings and also reduces the mass exposed aluminum to increase the brightness inside.This download is for the FY55 Window Door Components and includes the following types of system;The above are available in both Window, Door & Curtain Wall Templates. External window systems

Published [29/07/2016]

TECHNAL LTD: Technal FY65 SOLEAL High Performance Window Door Systems
A Technically Advanced Window System for Contemporary Fenestration Design.The SOLEAL high performance window is Technal’s most innovative window system to date, bringing a host of technical advancements and design features that will enhance almost any fenestration project.It offers:•Exceptional security, thermal, acoustic and weather performance•Unparalleled aesthetics•One single system available in numerous configurations.This download is for the SOLEAL high performance Window Door Components and includes the following types of system;Components created using "Metric Door/Window" templates added to download External window systems

Published [29/07/2016]

TECHNAL LTD: Technal FY65 SOLEAL High Performance Window System
A Technically Advanced Window System for Contemporary Fenestration Design.A Technically Advanced Window System for Contemporary Fenestration DesignThe SOLEAL high performance window is Technal’s most innovative window system to date, bringing a host of technical advancements and design features that will enhance almost any fenestration project.It offers:•Exceptional security, thermal, acoustic and weather performance•Unparalleled aesthetics•One single system available in numerous configurations.This download is for the SOLEAL High Performance Window System Components and includes the following types of system;Window components created using "Metric Window" templates added to download External window systems

Published [29/07/2016]

TECHNAL LTD: Technal FY65 SOLEAL High Performance Window System (Composite)
A Technically Advanced Window System for Contemporary Fenestration DesignThe SOLEAL high performance window is Technal’s most innovative window system to date, bringing a host of technical advancements and design features that will enhance almost any fenestration project.It offers:•Exceptional security, thermal, acoustic and weather performance•Unparalleled aesthetics•One single system available in numerous configurations.This download is for the SOLEAL Composite Window System Components and includes the following types of system; External window systems

Published [26/10/2016]

TECHNAL LTD: Technal GA Lumeal Sliding Window / Door Systems
Please Note: Not available in the UK, please contact Technal UK for assistance.With a 100 mm module LUMEAL is a hidden sliding opening that offers a minimalist line. This fineness ensures a gain of 8-14 % clear glazing according to the applications . LUMEAL allows a different opening configuration by combining associated fixed partS and sliding parts.This download is for the GA Lumeal Sliding Window / Door Components and includes the following types of system; Sliding doorset systems

Published [29/07/2016]

TECHNAL LTD: Technal GY55 Sliding Window / Door Systems
Please Note: Not available in the UK, please contact Technal UK for assistance.GY55 SOLEAL is a universal slide, thanks to its many adaptations and applications, from the simplest to the most complex project, sliding SOLEAL always offers an appropriate solution.This download is for the GY55 Sliding Window / Door Components and includes the following types of system; Sliding doorset systems

Published [29/07/2016]

TECHNAL LTD: Technal MX 62 Curtain Walling
MX is a complete curtain walling suite, offering specifiers enhanced thermal performance to meet the most stringent Building Regulations, and the widest choice of aesthetic options from a single system.MX62 gives specifiers the option of a 62mm module for the MX Visible Grid vertical façade to allow glazed units in larger sizes to be accommodated, maximising natural light.This download is for the MX 62 Curtain Walling Component.Rev 02 - Contact details updated Stick curtain walling systems

Published [29/07/2016]

TECHNAL LTD: Technal MX Acoustic Curtain Walling
MX is a complete curtain walling suite, offering specifiers enhanced thermal performance to meet the most stringent Building Regulations, and the widest choice of aesthetic options from a single system.Additional noise protection. MX Acoustic is an option for both MX Visible Grid and MX Trame Horizontale for applications where additional acoustic performance is required, such as city centre apartments, hospitals, student accommodation and buildings near airports and railway lines.This download is for the MX Acoustic Curtain Walling Component.Rev 02 - Contact details updated Stick curtain walling systems

Published [29/07/2016]

TECHNAL LTD: Technal MX Sloped Curtain Walling
MX is a complete curtain walling suite, offering specifiers enhanced thermal performance to meet the most stringent Building Regulations, and the widest choice of aesthetic options from a single system.The MX system allows sloped glazing to be created in MX Visible Grid or MX Trame Verticale, giving specifiers the flexibility to construct sloped roofs, atria, canopies, valleys and pyramids, which are fully compatible and visually consistent with the vertical facade.This download is for the MX Sloped Curtain Walling Component.Rev 02 - Contact details updated Stick curtain walling systems

Published [29/07/2016]

TECHNAL LTD: Technal MX Toggle Curtain Walling
MX is a complete curtain walling suite, offering specifiers enhanced thermal performance to meet the most stringent Building Regulations, and the widest choice of aesthetic options from a single system.The MX Toggle is a system creating a flush-fitted all glass facade, combining the use of fixed glazing units, top hunmg vents and glazed spandrel panels. The appearance of structural glazing is achieved by using profiles that are only visible on the room side. From the outside, only the glazing and slender shadow joints are visible.This download is for the MX Toggle Curtain Walling Component.Rev 02 - Contact details updated Stick curtain walling systems

Published [29/07/2016]

TECHNAL LTD: Technal MX Trame Curtain Walling
MX is a complete curtain walling suite, offering specifiers enhanced thermal performance to meet the most stringent Building Regulations, and the widest choice of aesthetic options from a single system.MX Trame has a pioneering design, which uses projecting aerofoil transom caps to add depth to the façade whilst slender face trim gaskets, that are flush with the front face of the infill, soften the corresponding vertical or horizontal sections.This download is for the MX Trame Curtain Walling Component.Rev 02 - Contact details updated Stick curtain walling systems

Published [29/07/2016]

TECHNAL LTD: Technal MX Visible Grid Curtain Walling
MX is a complete curtain walling suite, offering specifiers enhanced thermal performance to meet the most stringent Building Regulations, and the widest choice of aesthetic options from a single system.The MX system successfully balances the aesthetic requirements of architects with the functional needs of contractors, developers and occupiers, simplifying specification, fabrication and installation to ensure the highest quality and cost efficiency.This download is for the MX Visible Grid Curtain Walling Component.Rev 02 - Contact details updated Stick curtain walling systems

Published [29/07/2016]

TECHNAL LTD: Technal PY Doors
Technal’s market-leading commercial aluminium doors provide specifiers with flexibility in design, safety and security, combined with excellent weather resistance.Technal’s door solutions are designed for both lower traffic areas and heavy-duty use in busy public places, with maximum resistance to wear and effective protection against vandalism.This download is for the PY Door Component.Rev 02 - Contact details updatedDoor components created using "Metric Door" templates added to download Metal doorsets

Published [29/07/2016]

TECHNAL LTD: Tigal, Pull and slide
Hybrid solution, combining the advantages of a sliding door with the performance of a window. Opens by internal dislodgement of 6 mm and then the opening part slides in parallel with the fixed part. Its patented central sealing system guarantees exceptional water-tightness performance – up to 4 times better than a traditional sliding door. Great ease of use, due at innovative in its secure microventilation system. DESIGN • Visible or concealed opening • Concealed hardware • Concealed drainage , Windows & Doors, Windows

Published [24/04/2023]
