CRITTALL WINDOWS LTD
FRANCIS HOUSE
FREEBOURNES ROAD
WITHAM
ESSEX CM8 3UN
Tel: 01376 530800
Fax: 01376 530801
Suppliers of: Steel Windows, Metal Doors, Metal Windows, Commercial steel windows, Replica Steel Windows, Double Glazed Steel Windows, Steel window refurbishment, Steel Windows and doors, Replica Refurbishment
Crittall Windows Limited was established over 150 years ago in Braintree, Essex, England. Over the years, Crittall pioneered and standardised the steel window industry and became the dominant source of steel windows and doors internationally with manufacturing facilities on five continents.
- Cad Downloads available: click here
- NBS Specifications available: click here
- Social Media: Pinterest / Linkedin / Instagram / Twitter
Berkeley Range: Versatility In Replica Steel Windows And New Build
The Berkeley Window was originally created in order to replace existing 1920s and 1930s steel windows that were predominantly single pane leaded glass, exterior putty glazed. For the Berkeley window, Crittall developed an entirely new series of hot rolled sections where a solid steel chamfer replicates exterior putty glazing, whilst the interior glazing improves access for reglazing and security. Berkeley offers an ideal solution for both replacement projects and new construction where minimum sightlines, maximum daylight, and fine detail are desired. The system is suitable for high-end residential, institutional and commercial applications.
Corporate W20 Range: Steel Windows For The Future And The Past
The Corporate W20 windows and doors range offers great versatility. No other steel window system offers such an extensive range of sections, allowing the designer the opportunity to create many styles including elaborate composite windows.
An effective weatherstripping system, and the option of double glazing up to 14mm when gasket glazed, and 16mm wet glazed ensure excellent thermal insulation properties, and the system’s large opening casements and slim frame make it particularly popular with conservationists and planners.
Cold Formed Steel Doors: Commercial Steel Doors
Crittall’s door range is enhanced by an extensive range of narrow-style, hollow-profile, cold formed doors
HOMELIGHT Plus™: Residential Steel Windows
Crittall Homelight Plus™ windows provide maximum daylight due to their small profile design, and are designed for applications where smaller typical sizes do not require the weight or depth of the Corporate 2000, Corporate W20 or Berkeley sections.
InnnerVision®: Internal Glazed Screens
InnerVision internal screens are designed to transfer maximum levels of interior light using minimalist profiles. Offering a combination of modular or custom sized options with choice of acoustic, privacy and decorative glazing, Innervision allows the designer to create light, open spaces with refreshingly uncompromised design flexibility.
-----------------------------------------------------------------------------------------------------------------------------------------------
Crittall Fendor Ltd (A Crittall Group Company) Specialist Fenestration Products - tel: (0191) 417 0170
Crittall Fendor’s range extends beyond specialist mental health windows, with separate ranges of specialist fire rated products as well as security rated windows and doors. Most recently, Crittall Fendor has successfully developed unique products for the oil and gas industry, including a window that will withstand a hyrdocarbon fire.
Blast Resistant Glazing – power stations, refineries, chemical plants, Government buildings, oil and gas platforms.
Fire Resistant Glazing – railway stations, schools, hotels, hospitals, offices, museums, oil and gas platforms including fire doors as used in Abu Dhabi refineries.
Custodial Glazing –police custody cells and detention centers (inventor of the CellGuard® barless window and only manufacturer with level 1 to 4 Home Office approval. Also HO approved doors and roof lights.
General Healthcare Glazing – standard commercial and anti egress windows for Dementia care wards.
Mental Healthcare Glazing – Fendor has the largest range of specialist mental health windows in Europe for High, Medium and Low secure projects, including the UK’s best selling mental health window, CleanVent®
Security Glazing – up to SR4 including windows, doors and curtain walling for MOD and Government buildings, bank, jewellery shops, detention centers
Acoustic Glazing – music and arts venues, hotels, offices and hospitals
Further technical information is available to downoad from the BPi Download Library.
Education Sector Turns to Crittall
School and college authorities that need to improve the learning environment while enhancing their green credentials are turning to leading steel window manufacturer Crittall.
The company has a suite of products to upgrade both external appearance and interior comfort.
The education sector has a massive investment in its built environment and, despite the temporary dislocation caused by the pandemic, remains eager to find ways to keep control of costs and bear down on excessive energy consumption as things eventually return of normal.
Crittall offers a range of windows that are finding favour with the most prestigious educational establishments, in some cases presenting a fresh, modern aesthetic, in others replacing worn out fenestration that replicates a heritage appearance while greatly enhancing thermal performance.
And moving to the inside of the building a range of internal screens can provide for a lighter, more welcoming interior with no compromise to acoustic, security and safety requirements.
Popular among school and college authorities is the highly successful Corporate W20 window with its slender but strong frames.
For example, a programme of maintenance and energy efficiency improvement at the University of Sussex has involved the installation of W20 profiles throughout the Falmer campus, outside Brighton.
The windows have been installed in four buildings across the site, replacing the Crittall originals dating from when the university was first created in the early 1960s. Two of the refurbished buildings were Grade 2* listed.
At Corpus Christi College, Cambridge, Corporate W20 windows were installed in a modernist, concrete-framed accommodation block, also Grade 2 listed.
Meanwhile at the Levine Building at Trinity College, Oxford, the T60 advanced thermally-broken windows have been specified.
This profile can mount double or triple glazing to deal with harsher weather conditions and is suited to either new-build or replacement in listed buildings or conservation areas to meet the exacting requirements of local planning authorities.
Greatly improved thermal performance but with a like-for-like appearance was demanded by planners in the north London borough of Enfield when a special school, Durants, decided to expand into an existing classroom block on a nearby site.
Original 1950s single glazed steel windows were replaced with new double-glazed thermally-broken steel windows that exactly mimicked the appearance of the originals.
Overall U value for the completed project is 1.8 W/m2K based on a glass centre pane value of 1.0 W/m2K.
The double glazing incorporates toughened low E glass and an 18mm argon filled cavity.
Alternatively, the MW40 profile can be specified where superior air, wind or water resistance and greater sound attenuation are required. Offering the same high quality appearance as the W20 range the MW40 profile can accept glass up to twice the thickness as its stable mate.
Either double, or even triple, glazing up to 32mm thick can be installed with a consequent higher level of thermal or sound insulation.
Yet this is achieved while retaining the same slender steel profile for which Crittall products are renowned thereby ensuring maximum light ingress.

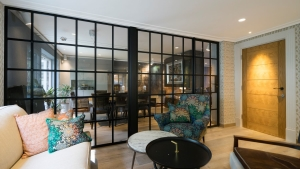

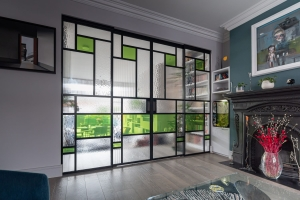

In addition to exterior steel windows and doors with their slim profiles Crittall’s InnerVision glazed interior screens ensure a seamless transfer of increased levels of natural daylight throughout the building reaching even the most remote working areas.
Solid partitions dividing workspaces can be replaced with glass and the performance of glazed interior screens can be further tailored to fine-tune levels of acoustic insulation, light transmission, thermal insulation and natural ventilation control to suit individual client’s requirements.
Crittall’s Innervision range of glazed internal fixed screens and doors can now be specified for fire rated applications.
The steel framed system is compliant with BS476 Part 22 providing 30 minutes (FD30) integrity fire resistance.
The profiles match the Corporate W20 exterior window range in appearance and can be supplied as fixed screens, with single or double leaf-hinged doors.
Russell Ager, Crittall managing director, commented: “Steel windows will out-perform other window materials in terms of longevity – evidenced by many that can still be seen in iconic buildings today.
“The low life cycle cost compared with other window materials, combined with the robustness and material selection to further reduce the burden of maintenance, properly maintained steel windows are expected to last the lifetime of a building.
Maintenance is very straightforward with just periodic inspection and cleaning required.”
Crittall Windows - Converted Cotton Mill
After purchasing an existing office building within an old Cotton Mill in the heart of one of Manchester, the clients of this stunning project made the decision to convert the existing offices into a modern apartment.
One of the challenges of the project was making the basement a usable and welcoming space. The existing rooms were dark and did not benefit from the transmission of natural light due to lack of windows. The clients made the decision to contact their local Crittall Specialist Partner, who handle local home owner projects from initial enquiry to completion, after in depth web research.
Crittall offered the opportunity to create a vast transmission of light throughout the the ground floor by glass screens to each of the bedrooms to allow the light to flow.
The use of Crittall Innervision screens was the perfect choice, the steel Crittall screens can be used in place of a wall whilst still complying with building regulations.
The sleek black frame gives a nod to the industrial heritage of the original cotton mill and tie in well with the cast iron columns running through the building.
The architectural aesthetic created by the use of the Crittall screens gives the home an industrial and modernist feel , whilst maintaining the original character of the building.
Having a staircase manufactured locally in a similar design to the glass screens as well as adding a further Crittall partition to the main floor of the apartment tied the idea of a fully glazed look throughout the house and further allowed light to flow through.
The result is a bright open space that is perfect for modern city living, whilst still maintaining the original historic feel of the building.
