Suppliers of: Aperam Stainless Steel Roofing Cladding stainless Steel Facades rainscreens.

Aperam manufacture stainless steel roofing and cladding that offers the ultimate combination of visual style, high performance, sustainability and suitability for diverse building styles. The recent introduction of ferritic stainless steel and consequent removal of nickel has both stabilised price and removed the high susceptibility to commodity driven price volatility and fluctuation allowing Aperam stainless steel roofing and cladding to be increasingly cost effective.



Uginox Patina – Terne Coated Stainless Steel

One of the main core products from Aperam is their Uginox Patina / Terne Coated Stainless which for decades has been the main choice for replacing lead on church roofs. This terne coated stainless steel product no only mimics the appearance of lead with a weathered finish but also makes further theft and resulting building damage extremely unlikely as there is no scrap value to metal thieves.

Aperam have supplied their terne coated Uginox Patina solution to churches and heritage buildings throughout the UK becoming a trusted and reliable option which is approved by English Heritage.

Uginox K44 Patina is free from Nickel so has a low and stable cost, whilst at the same time providing higher performance than grade 316. It is suitable for both warm roof or cold roof specifications and has a tensile strength which is far superior to that of copper, zinc or aluminium.

Historic England in recommending Terne Coated Stainless Steel state the following:

“In comparison with lead Terne Coated Stainless Steel offers a long lifespan of 80-100 years, and is comparable to lead in terms of its low maintenance requirements. It is very durable and coating the steel with tin (terne-coating) allows it to dull down after a few months to resemble lead. It can be laid with traditional round batten rolls to match the appearance and performance of lead. Terne Coated Stainless Steel offers many of the benefits of lead but without the risk of theft”.

Aperam Stainless steel roofing and cladding offers scope for use in new build, refurbishment and heritage projects. The increased incidents of metal theft, especially of copper and lead have also initiated the endorsement by English Heritage of the Aperam UGINOX PATINA K44 terne-coated stainless steel roofing as an alternative to lead or copper roofing. Acceptance for heritage projects stems principally from the availability of systems which weather quickly to take on the desired appearance of lead together with fast installation solutions.



The Advantages of Aperam Stainless Steel

There are many other surfaces delivering a wide variety of shade, texture and colour. Aperam stainless steel is light in weight, highly durable and offers exceptional corrosion resistance even in aggressive environments. Excellent mechanical strength enables it to be used at thinner gauges than most other metals used for façade and roofing systems. The strength and subsequent weight reduction delivers surprising cost benefits. Though the cost per tonne is high by comparison to other metals, the reduced weight is reflected in a correspondingly low cost per square metre.



Stainless steel has a very low coefficient of expansion but has high tensile and yield strengths. This means that single tray lengths of up to 20 metres can be used. Detailing work and on site fabrication including soldering is straightforward, even at very low temperatures. Stainless steel is also not susceptible to cold working fatique.



For contemporary building facades and roofs, Aperam surfaces retain their appearance for decades but present none of the attendant oxide corrosion issues associated with many other metals.



some of our work includes:

  •       Retail developments such as marks and Spencer Glasgow Fort, Birmingham Bullring and John Lewis Leicester
  •       Healthcare projects such as the South Liverpool NHS Health Centre
  •       Add to the leisure bullet Galashiels Interchange building

Aperam Stainless Steel Roofing

Aperam stainless steel roofing systems offer scope for use at very low pitches and are suitable for warm and cold roof designs, including ‘compact’ warm roofs. Installed using normal metal fabrication equipment, they offer an exceptional standard of colour retention, with UGINOX PATINA K44 also providing the matt grey characteristics of lead. In addition to providing excellent thermal and acoustic properties stainless steel roofing also requires no underside ventilation. Accompanying the high corrosion resistance is a similarly high performance in relation to thermal shock and an AA-rated resistance to fire.



Aperam Stainless Steel Facades

Aperam façade systems offer scope to define a building’s visual aesthetic. The style is highly distinctive and in addition to complementing a wide variety of timber, masonry and glazing systems can be used to make a major contribution to high BREEAM performance. Standing seam, interlocking panel, cassette and ribbed cladding systems are available in addition to vertical and horizontal rises. The neat delineation of interlocking cladding panels and shingles can be used to create square, rectangular and diamond shapes while cassettes can be perforated or stamped for additional refinement. Assembly can be undertaken either on or off-site using standard tools.



Aperam UK projects span sectors including health, education, leisure, retail, heritage and commercial. They include:-

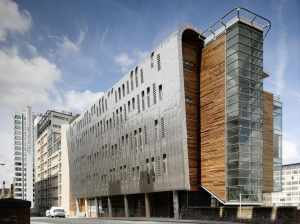

  • The Manchester headquarters of BDP Architects

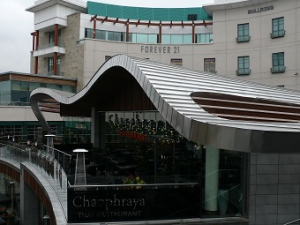

  • Retail developments such as The Birmingham Bullring and John Lewis stores

  • The Laboratory of Molecular Biology, Addenbrooke’s Hospital Cambridge

  • Education projects such as Bishop Wordsworth School, Salisbury, Milton of Leys Primary School, Inverness and Fordham University Colchester

  • Leisure and Conference facilities at Crewe Hall Hotel, Staffordshire

view our case studies here

Stainless Steel Economics and Sustainability

Stainless steel is fully recyclable and does not leach compounds or oxides that might contaminate water, soil or discolour other building materials. Indeed the harvesting of rain water is a regular requirement for use in grey-water applications or irrigation.



Maintenance requirements are minimal and even graffiti presents no major cleaning difficulties. Stainless steel is infinitely recyclable and therefore ideally suited within the construction sector where recycling levels are high. Overall, its inherent durability and long design life have led to it being classed as a highly sustainable green construction material.



UGINOX PATINA K44 is a bi-stabilized ferritic stainless steel terne coating on both sides that weathers over time, acquiring a natural matt patina akin to the traditional aesthetic of lead.



Aperam stainless steel surface finishes include:-

  • UGINOX TOP A permanent and durable matt finish

  • UGINOX PATINA K44 An electro-terne coating on both sides that weathers over time, and becomes grey with a matt finish.

Please contact Aperam for related information.
