ADVECO LTD
UNIT 7 & 8
ARMSTRONG MALL
SOUTHWOOD BUSINESS PARK
FARNBOROUGH
HAMPSHIRE GU14 0NR
Tel: 01252 551540
Fax:

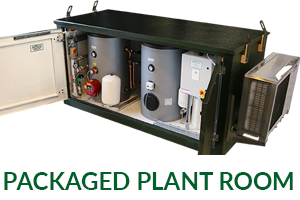

Suppliers of: Gas Boilers, Air Source Heat Pumps, Packaged Plant Rooms, Renewable Heating, Commercial Heating Systems, Solar Thermal Heating, Heat Recovery, Water Heating
Adveco – The Hot Water Specialists - Bespoke & Packaged Domestic Hot Water Systems for Commercial Projects

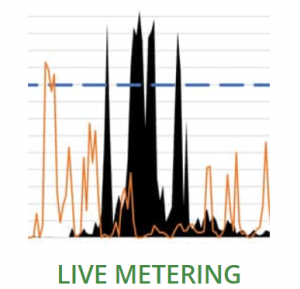

Adveco Ltd. is the trusted specialist provider of bespoke, low-carbon hot water and heating systems to the building services industry. Adveco is the single source for system design, supply, commissioning and warranty service. Our services include onsite metering, engineer assessment, and theoretical modelling. Adveco also provides a wide range of options for electric and gas water heating, incorporating the latest heat pumps, solar thermal, electric boilers, cylinders, gas water heaters and boilers, and heat recovery technologies. From individual appliances to full systems that can be packaged or even built off-site and delivered ready for installation, Adveco is able to support projects with bespoke offerings that ensure optimal and cost-effective operation and a route to reducing carbon emissions from your buildings.
BIM & CAD Files available: Click here
Our sectors include:
- Education
- Healthcare
- Hotels
- Leisure
- Offices
- Public Sector
- Restaurants & bars
Our Product Ranges:

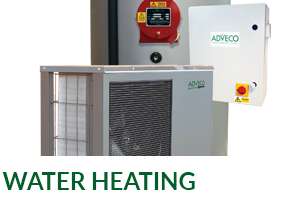

Water Heating - Commercial Hot Water Systems:
Data gathering, sizing and bespoke system recommendation for commercial properties intending to replace legacy gas systems.

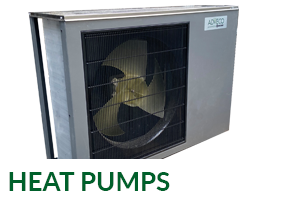

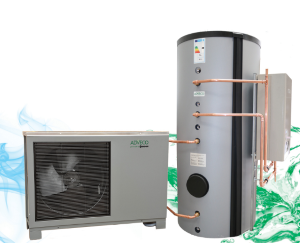

A range of ASHP’s with above average seasonal coefficient of performance (SCOP), for DHW system pre-heat
- FPi-32 Air Source Heat Pumps
- L70 Air Source Heat Pump
- FUSION Packaged Electric Water Heating System
Compact, efficient systems for carbon reduction in commercial buildings which use large amounts of daily hot water, whether on gas or electric.

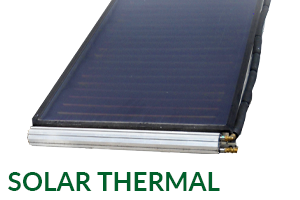

- Solar Collectors
- Solar Thermal Drainback
- SGE Water Heater with Integrated Solar
A wide selection of highly efficient condensing gas water heaters. Choose from glass-lined or stainless steel vessels with a range of tank sizes to meet project demands.
- AD Water Heaters
- AD Plus Instantaneous Water Heaters
- BFC Cyclone Water Heater
- Innovo Water Heater
- SGE Water Heater
- Twister II Water Heater

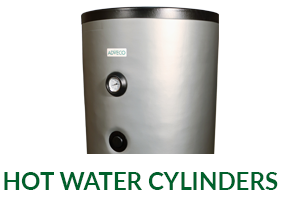

For the widest selection of commercial-grade hot water cylinders with indirect-fired water heaters, calorifiers and buffers for various DHW applications requiring large volume storage of water at high temperatures.
- SSB, SSI, SST Stainless Steel Hot Water Tanks
- ATSx Stainless Steel Hot Water Tanks
- GL Hot water Cylinders
- MSS Premium Steel Buffers
- IT Indirect Tanks
- ITS Twin Coil Indirect Tanks
- ST Storage Tanks
A range of electric boilers and water heaters designed to cut carbon emissions in line with net zero strategies and drive greater efficiency and longevity optimising capital investments.
- ARDENT Floor-Standing & Wall-Mounted Electric Boilers
- FUSION Packaged Electric & Packaged Renewable Water Heaters
- SSB-E Stainless Steel Electric Water Heaters
- DRE Electric Water Heaters
- EES Electric Water Heaters
A range of electric immersion heaters and kits for use with water heating systems. Ideally suited as backup heat sources in a wide variety of applications, they are an excellent choice for low carbon top up heating when paired with renewables.
- EB Series
- E Series
The HR001, is a standalone Heat Recovery Unit providing a convenient, packaged unit to recover refrigerant system waste heat. Perfect for commercial organisations that make use of large chiller or refrigeration technology as part of their day to day operations, such as restaurants and large-scale catering facilities in hotels, schools or universities and retailers holding frozen stock.
Creating a modern, efficient, cost-effective, and sustainable hot water & heating system is not just advantageous, it is increasingly becoming a demand as the United Kingdom transitions towards a more environmentally friendly Net-Zero nation by 2050.
- Low Carbon Packaged e32-Hot Water System
- MD Floor Standing Boilers
- MD Wall Hung Boilers
- MSB Standard Steel Heating Buffers
- Chilled Water Tanks
Adveco Ltd. employ an experienced team of industry professionals to provide first class services including technical support. An in-house technical department is available to provide specialist technical information and support for any query.
Further technical information is valiable through the Manufacturer’s own website or from the BPi Download Library
The Pitfalls Of Decentralising Electric Water Heating With Point Of Use Heaters
Point-of-use (POU) electric water heating in commercial applications was designed for single-outlet demands, usually located far from the plant room, which would be difficult to supply in other ways. Typical examples of its application might be an outbuilding, small buildings with low hot water demand, a tea point in a warehouse with few employees or a small washroom at the end of a long, dead-end corridor.
Increasingly, POU is being specified in buildings without a gas connection to decentralise the hot water system. But is this the right way to use the technology?
Centralised hot water systems have been in use in commercial buildings for generations, where the pumped secondary returns ensure hot water is available at the tap quickly. But, secondary pipework does lose energy, and this is presented as an argument for using POU, but is this just increasing complications and costs?
We also need to recognise how centralised systems work and understand if all energy loss is a waste or a necessary function of the system. And, if eradicating energy losses, will it improve the system? The answer is not as straightforward as you might think.
Under BS 5422:2023, the minimum level thickness of insulation is established for non-domestic hot water service areas to control heat loss (25-40mm for 17 to 60mm external diameter pipework). Under this regulation, where an average of 9W/m maximum heat loss is permissible, secondary losses from centralised systems meet acceptable levels.
Under this current condition, if we were to apply the maximum permissible heat loss to a 50m run of secondary return pipework, operating for 16 hours per day, the secondary losses would amount to 7.2 kWh/day. POU aims to replace the centralised system and eliminate this secondary loss. As a conservative response, we could propose a replacement POU application employing 10 x 15-litre over- or under-sink units. However, you must remember that POU also exhibit standing losses, which can easily be 0.85 kWh/day. Multiply this by the specified 10 units, and losses from POU will equate to 8.5 kWh/day. These are averages, so there will be variance. Overall, the energy losses of both systems are going to be similar.
If energy losses are part of both centralised and POU-based systems, and are acceptable within the specification, what are the other considerations?
Let’s take school buildings as an example, where the Department for Education (DfE) currently recommends a variety of approaches to water heating, with centralised systems for catering functions which represent a large, single ‘point of use’ of hot water. In addition, “design and installation shall prioritise the use of local non-storage (or low storage) ‘point of use’ electric water heaters. This is to reduce standing losses from centralised systems and to prevent pipework heat loss, increasing the risk of overheating.”
This approach is driving the specification of heat pumps to support the ‘centralised’ kitchen and then large numbers of POU electric water heaters. A recent example of a primary school with 350 students intended to incorporate more than 35 POU heaters for washbasins located throughout the school.
Although units are individually low-cost, at these numbers, the capital investment starts to climb, especially when factoring in the high cost of cabling in each unit. POU electric water heaters are also basic, with no connection to the Building Management System (BMS), so there is no option to highlight a fault, enable the unit or apply time control. That’s compounded by a lack of individual miniature circuit breakers (MCBs) to prevent damage or potential fire from an overload or short circuit. Crucially for water heating, which is a business-critical service, there is no redundancy with a POU water heater. If it breaks, there is no hot water at the tap until it is repaired or replaced.
Regular maintenance of hot water systems is a critical part of efficient operation, with regular replacement of anodes and descaling of tanks where high-intensity temperatures created by electric immersions encourage the formation of limescale. This is wet, dirty work that, in centralised systems, is contained within the plant room. While the issues of limescale can be virtually eliminated in centralised systems such as Adveco’s award-winning FUSION package electric water heating systems, POU water heaters cannot avoid it in hard water areas and will exhibit scale problems with some variance in time due to the intensity of use. The problem is that building operators do not maintain point-of-use water heaters, so maintenance or, more likely, replacement will be necessitated as the cost of a new unit at £150 does not warrant a £100 maintenance charge.
For this reason, POU systems will be subject to a rolling replacement program, which will subsequently increase a building’s embodied carbon and landfill waste generation. This also brings maintenance personnel into the occupant’s space. Professional offices do not want technicians working in their toilets, whilst many buildings, such as schools, care homes, prisons, or hospitals, have safeguarding concerns with technicians in occupied spaces, who are then carrying out wet, messy work.
With the drive to eradicate energy losses not stacking up, as POU standing losses are likely to equal or even supersede secondary losses of well-designed centralised systems, most commercial buildings should have a centralised hot water system with secondary return and not POU on every floor of shell and core constructed properties. The centralised system is also able to take advantage of low-carbon preheat, whether in the form of heat pumps or solar thermal, that can continue to evolve the system’s ability to reduce dependency on energy, reducing carbon emissions and energy costs across its lifetime. On paper, POU electric water heaters appear to be a quick and easy way to distribute hot water throughout a building. But the reality is that throughout the operational life of the building, POU is, unless correctly employed as a terminal fixture away from the centralised system, ultimately expensive, problematic and limited in options for future developments.
Adveco’s Bill Sinclair Elected Chair Of ICOM Commercial Heating Technical Committee
The Industrial and Commercial Heating Equipment Association (ICOM) has announced the appointment of Adveco technical director Bill Sinclair as its new chair of the Commercial Heating Technical Committee (CHTC).
Consisting of commercial heating and hot water appliance manufacturers, the emphasis of the ICOM CHTC is on matters impacting technical advancement, including appliance production, certification and maintenance. The group works to guide UK and CEN standards and European legislation affecting products, as well as advising on and influencing political decision-making which can affect product design and characteristics.
Bill Sinclair, chair of ICOM CHTC, said, “Since 1933 ICOM has been a singular voice representing the interests of the non-domestic heating sector. Today, as the pressure of change increases, and the industry rallies behind the drive toward the decarbonisation of commercial buildings in the UK, ICOM’s role in driving technical and commercial thought and garnering Government support for better design, manufacture and implementation of heating equipment has never been more important.”
ICOM leverages the commercial and technical expertise of its membership via product-related groups and close links with other trade associations to share knowledge on industry issues of common interest. Creating this shared depth of expertise generates greater influence and impact when presenting best practice to members and for lobbying UK Government and European Committees.
Steve McConnell, director, ICOM, said, “The work of the CHTC is extremely valuable, ensuring ICOM remains effective at a very important time in the commercial heating sector. The resources ICOM produces, both technical and commercial, not only provide tangible benefits to members, but also increase engagement with decision makers in Government. One of ICOM’s key strengths.”
“ICOM has always evolved to meet and advance heating and hot water solutions for the benefit of the industry’s members, clients and, more so than ever, the wider environment”, Bill observed. “It is therefore an incredible honour to be elected to the role of ICOM CHTC chair, supporting the association at such a critical time in the evolution of the UK’s response to the need for more efficient, cost-effective and sustainable industrial and commercial heating.”
Originally the British Oil Burner Manufacturers’ Association (BOBMA), ICOM has extended its reach and membership steadily over the past 90 years so that it now covers all aspects of energy-related business activities, with targeted working groups that deliver technical advice to inform government departments.
With more than twenty years of industry experience in mechanical engineering and as technical director at award-winning hot water specialists Adveco, Bill Sinclair continues to manage the company’s bespoke design and engineering team, as well as driving innovation in product and system development of water heating systems for commercial and light industrial applications.
Visit
https://www.icom.org.uk/
