Armatherm™ is one of the leading suppliers of structural thermal break materials for the construction industry. Our goal is to provide architects, structural engineers and building design professionals with effective solutions to prevent thermal bridging.

Office Locations in the United Kingdom, Republic of Ireland and the United States.

Thermal bridging has been recognised as a significant factor in building envelope heat loss. Armatherm™ thermal break materials have low thermal conductivity and high strength and have been designed and tested to prevent thermal bridging. Armatherm™ thermal bridging solutions can be used anywhere a penetration or transition exists in a building envelope creating a thermal bridge. Armatherm™ structural thermal break materials minimise heat loss at balcony, canopy, parapet, masonry shelf angle and cladding connections.

Armatherm™ THERMAL BREAK PRODUCTS:

Armatherm™ structural thermal break materials provide a combination of low thermal conductivity and high compressive strength. They have been specifically designed and tested to transfer load and prevent thermal bridging. Armatherm™ has been proven through three dimensional modeling to reduce heat loss in wall assemblies, transitions and structural connections throughout the building envelope.

--------------------------------------------------------------------------------------------------------------------------------------------------------------

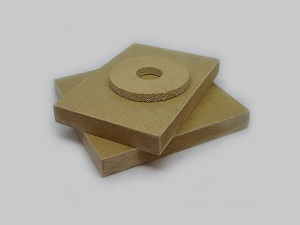

Armatherm™ FRR is an extremely strong and durable thermal break material suitable for supporting heavy loads while cutting conductive heat loss.

(Thermal Insulation Material – TIM):

Armatherm™ FRR structural thermal break material provides a combination of low thermal conductivity and high compressive strength and has been used in hundreds of structural steel framing connections transferring load in moment and shear conditions. Armatherm™ FRR thermal break material can support high loads and has great mechanical properties. The material is made of a reinforced, thermoset resin which is fire resistant making it the ideal material for use in structural steel and façade thermal break connections.

Armatherm™ FRR Thermal Washer and Bushing:

With a bolt through insulation pad there is a slight thermal transfer along the connecting bolt. To further reduce heat loss, Armatherm™ FRR bushings and washers can be used on the warm face of the structure. A thermal break at the bolt connection will reduce heat loss an additional 4% per bolt depending on the wall assembly construction.

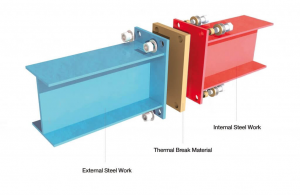

Structural Steel Thermal Break Connection:

Armatherm™ FRR Thermal Break Pads are often called Thermal Bridges, balcony isolators, structural thermal breaks, cantilever steelwork thermal bridging, cold bridge isolation, thermal partitions, steelwork thermal break, thermal bridging, cold bridging pads, cold bridging solutions. All of these solutions use Thermal Insulation Material TIM to prevent thermal bridging.

--------------------------------------------------------------------------------------------------------------------------------------------------------------

Armatherm™ 500 Structural Thermal Break Material is a high strength, polyurethane material manufactured in several densities to support a wide range of building loads.

(Thermal Insulation Material – TIM):

Reducing heat flow within a building’s thermal envelope reduces energy consumption as well as potential condensation issues. Armatherm™ 500 thermal break material (TIM) significantly reduces energy lost from thermal bridging in building envelope connections. Armatherm™ 500 structural thermal break material is a high strength, thermoset polyurethane manufactured in several densities. Armatherm™ 500 thermal break material can support high loads and has a selection of four grades of material with different compressive strength capabilities. The Armatherm™ 500 thermal insulation blocks have very limited creep under load, plus they do not absorb water because of their closed cell structure. Therefore, energy lost via thermal bridging is reduced within building envelope connections. Heat flow, energy consumption and potentially dangerous condensation issues are all minimised as a result.

Armatherm™ 500 – Parapet Roof Penetration Thermal Bridging Solution:

Thermal bridging is necessary in locations such as roof to wall and parapets as they require structural framing for support. By including thermal break materials under the parapet connecting the facade and roof insulation, the R value can be improved by as much as 30%. Within the building envelope, a thermal break can also be installed at roof penetration points where structural elements are supported.

Armatherm™ 500 – Column Base Thermal Bridging Solution (load dependent):

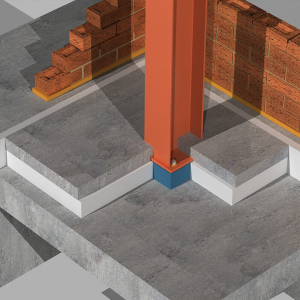

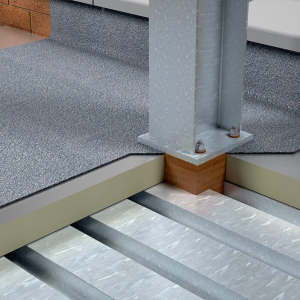

In a traditional structure, columns extend throughout the building envelope and slab insulation are positioned at their base. Cold bridges can be prevented with the use of a thermal break. Armatherm™ 500 has a limited creep under load as well as high strength, making it the best solution for load supporting thermal break requirements.

Armatherm™ 500 – Foundation Wall Thermal Bridging Solution (load dependent):

Further areas with the potential to feature thermal bridges are the foundations of a building and the connection from slab on grade to a foundation wall. Energy loss can be reduced dramatically with the addition of an Armatherm™ 500 series thermal insulation block which support exceptionally high loads of up to 300N/mm2.

--------------------------------------------------------------------------------------------------------------------------------------------------------------

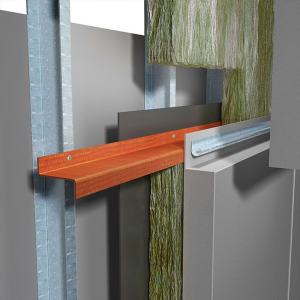

Armatherm™ Z Girt is a nonconductive cladding support system, strong enough to hold most cladding and insulation details.

Armatherm™ Z Girt thermally broken cladding support connection solutions prevent excessive heat flow and potential condensation problems otherwise associated with thermal bridging. Moreover, wall assemblies using Armatherm attachments will meet the continuous insulation requirement of ASHRAE 90.1 and the effective R value requirements of the Canadian NECB energy code.

Modelling results show that using Armatherm Z girts results in several improvements in the thermal efficiency of wall designs, reducing heat flow:

  • The insulation efficiencies of the wall assemblies increase significantly. Some as high as 98%.
  • Higher, effective wall assembly R values are achieved using lower values of external insulation. For example, to obtain an R value of R-13 minimum to meet ASHRAE zone 1, steel girts require and external R 20; whereas Armatherm girts require only R 10.
  • Cladding wall assemblies can meet the R value requirements of ALL geographical zones for both ASHRAE 2013 and NECB 2011 energy codes using Armatherm Z girts.
  • Reduction in thickness and cost of insulation.
  • Reduces energy consumption.

--------------------------------------------------------------------------------------------------------------------------------------------------------------

Armatherm™ thermal bridging solutions is part of the Armadillo Noise & Vibration Group which manufacture a wide range of Noise & Vibration products.

Armadillo Noise & Vibration Solutions offer suppressant materials for use in facilities and construction to include:

  • Armaload - DLW66: Armaload DLW66 random oriented fiber (ROF) bearing pads are made from masticated elastomer which is fully cured and fiber reinforced.
  • Armaload - Mil-C-882: Armaload is a preformed fabric bearing pad which meets MIL-C-882, AASHTO 14.7.6.1, AASHTO 14.7.6.2 and AASHTO  18.10.1 specifications.
  • Armacork: Offered in various sheet sizes and thicknesses Armacork is the ideal entry level material to offer a cost effective and fast vibration control solution for many industrial applications.
  • Neoprene Pads: Some applications do not warrant the expense of a custom made Vibration Control pad but do require some element of resilience in the installation.
  • Vibstop: Vibstop isolation material is a specifically designed vibration absorbing medium. Produced as a cost-effective solution to isolating foundations whether it be existing machinery or installing new equipment.
  • Armacush: Armadillo Armacush is an ideal product which not only gives excellent long term performance but is also specifically designed for ease of installation to avoid costly delays in the construction process.
  • PTFE: When movements need to be accommodated in structural connections, a sliding element will need to be employed in the design. Armadillo can design manufacture and supply a cost effective solution for applications such as vessel thermal, petrochemical applications, pipelines or building movement joints.
  • Regupol/Regufoam: Regufoam® was developed as a top-quality mixed-cell PUR foam for vibration damping and structure-borne noise decoupling. Regufoam® is made in various densities with precisely stipulated physical properties.

--------------------------------------------------------------------------------------------------------------------------------------------------------------
