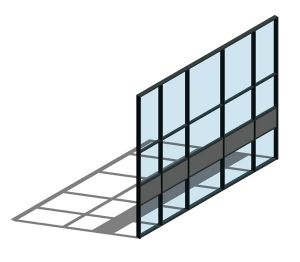

KAWNEER UK LTD: AA®265 Unitised Curtain Wall System
The AA®265 offers the advantage of a dry-glazed assembly giving the building team a unique set of benefits. These include factory fabrication to ensure additional quality control, rapid on site installation, as well as slimline design and flexibility. In addition, if limited access during installation is required, the AA®265 system can be installed, under restricted working conditions, with the building remaining occupied.Weathering is achieved by zone drained pressure equalisation. The glazing provides a positive weather seal for high performance. The system also features the exclusive, high performance thermal break. The AA®265 unitised system gives the specifier a wide choice of styles to create individual and exciting building facades. The AA®265 can accommodate spandrel infill materials including glass, stone and metal panels.The AA®265 unitised curtain wall system is adaptable to any new construction project from two storeys upwards. The system is ideal for fast track installation where safe methods of work are required. The AA®265 has been exclusively designed and developed by Kawneer, with installation contracts undertaken in collaboration with its network of authorised dealers.The AA®265 has been tested and certified in accordance with the CWCT Sequence B 2006 Standard for Systemised Building Envelopes.This download is for the Kawneer AA265 Unitised Curtain Wall System. It includes pre-configured curtain wall types with a square face cap.rev 2 - additional half profile mullion added (product code 3002 267) Unitized curtain walling systems, Curtain Walls

Published [29/06/17]

KAWNEER UK LTD: AA®3572 Lift/Slide Door System
The Kawneer AA®3572 Lift/Slide Door has been developed as a solution for projects that demand the highest levels of thermal and weathering performance. The AA®3572 thermally insulated system delivers optimum levels of quality and performance with the lift/slide technology providing effortless operation and enabling maximum panel sizes up to 3m x 3m and maximum weights up to 400Kg. Highly robust profiles with high insulation values enable large areas of glass and freedom in design for even large spans. The option of slim meeting stiles allow the system to remain unobtrusive and, as a sliding system, it is an ideal space saving solution where safety is a consideration and projecting swing doors are undesirable. The double EPDM gasket with continuous rebate provides exceptional weathering performance and high levels of sound reducation.This download is for the Kawneer AA®3572 Lift/Slide Door System (as Door components) and includes various 2, 3, 4 and 6 door preconfigured variations. Each door can be adjusted in size and each leaf will increase equally.Please consult Kawneer technical department for guidance on detailing the AA®3572 Lift/Slide Door System Metal doorsets

Published [17/10/16]

KAWNEER UK LTD: AA®3572 Lift/Slide Door System - (Curtain Wall Door)
The Kawneer AA®3572 Lift/Slide Door has been developed as a solution for projects that demand the highest levels of thermal and weathering performance. The AA®3572 thermally insulated system delivers optimum levels of quality and performance with the lift/slide technology providing effortless operation and enabling maximum panel sizes up to 3m x 3m and maximum weights up to 400Kg. Highly robust profiles with high insulation values enable large areas of glass and freedom in design for even large spans. The option of slim meeting stiles allow the system to remain unobtrusive and, as a sliding system, it is an ideal space saving solution where safety is a consideration and projecting swing doors are undesirable. The double EPDM gasket with continuous rebate provides exceptional weathering performance and high levels of sound reducation.This download is for the Kawneer AA®3572 Lift/Slide Door System (as Curtain Wall Panels) Components and includes 2, 3, 4 and 6 door preconfigured variations.All parts, details and frames variations are include to allow the specifier to create their own version of the system. Please consult Kawneer technical department for guidance on detailing the AA®3572 Lift/Slide Door System Metal doorsets

Published [17/10/16]

KAWNEER UK LTD: AA®720 Pivot Windows
The AA®720 Pivot Window is the latest addition to the AA®720 range of Windows and Doors. It is available in horizontal, vertical and offset vertical pivot options. Slim sightlines and functionality provide design flexibility in various applications.The 72mm wide insulated multi-chamber profiles incorporating Kawneer’s unique Reflex thermal break technology, multi-chambered EPDM centre seals and polyethylene foam profile around the glazing rebate, enable U values of 1.4 W/m2K to be achieved*.This download is for the AA®720 Pivot Window Curtain Wall System.- Horizontal Vent (including transom version)- Vertical Vent (including Transom version)- Large Vent versions- HW & HI varitations Aluminium window units

Published [17/10/16]

KAWNEER UK LTD: AA100 (50mm) Curtain Wall System - Dual Colour
The AA®100 Curtain Wall system provides a unique dry jointed façade solution that has been designed and developed to provide the specifier with opportunities to design original and exciting facades. The system is available in a variety of styles and is suitable for vertical and sloped applications including facetted walls. To provide complete design flexibility the AA®100 is also available as a Horizontally Capped system, a Structurally Silicone Glazed System and a Fire Resistant System.This download is for the Kawneer AA100 (50mm) Dual Colour Curtain Wall System. It includes pre-configured curtain wall types for both zone and mullion drained, and also includes all available face cap sizes as face based components.rev2 - user guide update Stick curtain walling systems

Published [21/12/17]

KAWNEER UK LTD: AA100 (50mm) Curtain Wall System - HC
The AA®100 Curtain Wall system provides a unique dry jointed façade solution that has been designed and developed to provide the specifier with opportunities to design original and exciting facades. The system is available in a variety of styles and is suitable for vertical and sloped applications including facetted walls. To provide complete design flexibility the AA®100 is also available as a Horizontally Capped system, a Structurally Silicone Glazed System and a Fire Resistant System.This download is for the Kawneer AA100 (50mm) HC Curtain Wall System. It includes pre-configured curtain wall types for both vertical gaskets and vertical face caps (bullnose & square).rev2 - user guide update Stick curtain walling systems

Published [21/12/17]

KAWNEER UK LTD: AA100 (50mm) Curtain Wall System - Mullion Drained
The AA®100 Curtain Wall system provides a unique dry jointed façade solution that has been designed and developed to provide the specifier with opportunities to design original and exciting facades. The system is available in a variety of styles and is suitable for vertical and sloped applications including facetted walls. To provide complete design flexibility the AA®100 is also available as a Horizontally Capped system, a Structurally Silicone Glazed System and a Fire Resistant System.This download is for the Kawneer AA100 (50mm) Mullion Drained Curtain Wall System. It includes pre-configured curtain wall types for 5 types of face cap (square, rounded, bullnose, renovation & 'H' style).rev2 - user guide update Stick curtain walling systems

Published [21/12/17]

KAWNEER UK LTD: AA100 (50mm) Curtain Wall System - SSG
The AA®100 Curtain Wall system provides a unique dry jointed façade solution that has been designed and developed to provide the specifier with opportunities to design original and exciting facades. The system is available in a variety of styles and is suitable for vertical and sloped applications including facetted walls. To provide complete design flexibility the AA®100 is also available as a Horizontally Capped system, a Structurally Silicone Glazed System and a Fire Resistant System.This download is for the Kawneer AA100 (50mm) SSG Curtain Wall System. It includes pre-configured curtain wall types for both vertical gaskets and vertical face caps (bullnose & square).rev2 - user guide update Stick curtain walling systems

Published [21/12/17]

KAWNEER UK LTD: AA100 (50mm) Curtain Wall System - Zone Drained
The AA®100 Curtain Wall system provides a unique dry jointed façade solution that has been designed and developed to provide the specifier with opportunities to design original and exciting facades. The system is available in a variety of styles and is suitable for vertical and sloped applications including facetted walls. To provide complete design flexibility the AA®100 is also available as a Horizontally Capped system, a Structurally Silicone Glazed System and a Fire Resistant System.This download is for the Kawneer AA100 (50mm) Zone Drained Curtain Wall System. It includes pre-configured curtain wall types for 5 types of face cap (square, rounded, bullnose, renovation & 'H' style).rev2 - user guide update Stick curtain walling systems

Published [21/12/17]

KAWNEER UK LTD: AA110 (65mm) Curtain Wall System - Dual Colour
The AA®110 curtain wall system has been designed in line with the AA®100 system, the fundamental difference is the depth of the mullions and transoms. The AA®110 65mm system with its deeper glazing rebate meets the requirements for barrier loading and enables the facade to stand up to high levels of building movement.The AA®110 is suitable for vertical and sloped applications including faceted walls. As with the AA®100 system, the AA®110 also offers a range of construction methods, including zone-drainage and mullion-drainage. The AA®110 enables architects, assisted by our Architectural Advisers or Architectural Services Team, to identify the optimum curtain walling solutions and create inspirational architectural designs.This download is for the Kawneer AA110 (65mm) Curtain Wall System - Dual Colour Curtain Wall System. It includes pre-configured curtain wall types for both zone and mullion drained, and also includes all available face cap sizes as face based components.rev2 - user guide update Stick curtain walling systems

Published [21/12/17]

KAWNEER UK LTD: AA110 (65mm) Curtain Wall System - Mullion Drained
The AA®110 curtain wall system has been designed in line with the AA®100 system, the fundamental difference is the depth of the mullions and transoms. The AA®110 65mm system with its deeper glazing rebate meets the requirements for barrier loading and enables the facade to stand up to high levels of building movement.The AA®110 is suitable for vertical and sloped applications including faceted walls. As with the AA®100 system, the AA®110 also offers a range of construction methods, including zone-drainage and mullion-drainage.The AA®110 enables architects, assisted by our Architectural Advisers or Architectural Services Team, to identify the optimum curtain walling solutions and create inspirational architectural designs.This download is for the Kawneer AA100 (50mm) Mullion Drained Curtain Wall System. It includes pre-configured curtain wall types for 5 types of face cap (square, rounded, bullnose, renovation & 'H' style).rev2 - user guide update Stick curtain walling systems

Published [21/12/17]

KAWNEER UK LTD: AA110 (65mm) Curtain Wall System - SSG
The AA®110 curtain wall system has been designed in line with the AA®100 system, the fundamental difference is the depth of the mullions and transoms. The AA®110 65mm system with its deeper glazing rebate meets the requirements for barrier loading and enables the facade to stand up to high levels of building movement. The AA®110 is suitable for vertical and sloped applications including faceted walls. As with the AA®100 system, the AA®110 also offers a range of construction methods, including zone-drainage and mullion-drainage. The AA®110 enables architects, assisted by our Architectural Advisers or Architectural Services Team, to identify the optimum curtain walling solutions and create inspirational architectural designs.This download is for the Kawneer AA100 (50mm) SSG Curtain Wall System. It includes pre-configured curtain wall types for both vertical gaskets and vertical face caps (bullnose & square).rev2 - general updates / dimension adjustmentrev3 - user guide update Stick curtain walling systems

Published [21/12/17]

KAWNEER UK LTD: AA110 (65mm) Curtain Wall System - Zone Drained
The AA®110 curtain wall system has been designed in line with the AA®100 system, the fundamental difference is the depth of the mullions and transoms. The AA®110 65mm system with its deeper glazing rebate meets the requirements for barrier loading and enables the facade to stand up to high levels of building movement.The AA®110 is suitable for vertical and sloped applications including faceted walls. As with the AA®100 system, the AA®110 also offers a range of construction methods, including zone-drainage and mullion-drainage.The AA®110 enables architects, assisted by our Architectural Advisers or Architectural Services Team, to identify the optimum curtain walling solutions and create inspirational architectural designs.This download is for the Kawneer AA110 (65mm) Zone Drained Curtain Wall System. It includes pre-configured curtain wall types for 5 types of face cap (square, rounded, bullnose, renovation & 'H' style).rev2 - user guide update Stick curtain walling systems

Published [21/12/17]

KAWNEER UK LTD: AA190 TB Door - BH into AA100 - Open In (Curtain Wall Door)
The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.This download is for the Kawneer AA190 TB Door - BH into AA100 - Open In (Curtain Wall Door) Components and includes files for both single and double leaf openings. Metal doorsets

Published [07/11/18]

KAWNEER UK LTD: AA190 TB Door - BH into AA100 - Open Out (Curtain Wall Door)
The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.This download is for the Kawneer AA190 TB Door - BH into AA100 - Open Out (Curtain Wall Door) Components and includes files for both single and double leaf openings. Metal doorsets

Published [26/10/18]

KAWNEER UK LTD: AA190 TB Door - BH Open In (Curtain Wall Door)
The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.This download is for the Kawneer AA190 TB Door - BH Open In (Curtain Wall Door) Components and includes files for both single and double leaf openings. Metal doorsets

Published [07/11/18]

KAWNEER UK LTD: AA190 TB Door - BH Open Out (Curtain Wall Door)
The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.This download is for the Kawneer AA190 TB Door - BH Open Out (Curtain Wall Door) Components and includes files for both single and double leaf openings. Metal doorsets

Published [26/10/18]

KAWNEER UK LTD: AA190 TB Door - FFG into AA100 (Curtain Wall Door)
The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.This download is for the Kawneer AA190 TB Door - FFG into AA100 (Curtain Wall Door) Components and includes files for both single and double leaf openings. Metal doorsets

Published [26/10/18]

KAWNEER UK LTD: AA190 TB Door - FFG Open Out (Curtain Wall Door)
The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.This download is for the Kawneer AA190 TB Door - FFG Open Out (Curtain Wall Door) Components and includes files for both single and double leaf openings. Metal doorsets

Published [02/05/19]

KAWNEER UK LTD: AA190 TB Door - RFG into AA100 (Curtain Wall Door)
The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.This download is for the Kawneer AA190 TB Door - RFG into AA100 (Curtain Wall Door) Components and includes files for both single and double leaf openings. Metal doorsets

Published [07/11/18]

KAWNEER UK LTD: AA190 TB Door - RFG Open Out (Curtain Wall Door)
The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.The AA®190 TB is an all-purpose door for use in high traffic areas and automatic entrances. Its robust construction means that it is suitable for use in heavy/severe applications. It can be installed with a finger guard pivot stile, which safeguards against injury to fingers accidentally caught between the hinge stile and frame.This download is for the Kawneer AA190 TB Door - RFG Open Out (Curtain Wall Door) Components and includes files for both single and double leaf openings. Metal doorsets

Published [07/11/18]

KAWNEER UK LTD: AA541 Casement Window
The Kawneer AA®541 Casement Window is part of the Kawneer AA®540 Series window range designed to offer optimum weather and thermal performance at a competitive price. The AA®541 corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A+**. The AA®541 uses a multi-chamber thermal break core, ensuring thermal efficiency and full compliance with Document L.This download is for the AA541 Casement Window Curtain Wall System. Stick curtain walling systems

Published [11/09/15]

KAWNEER UK LTD: AA542 Pivot Window
The Kawneer AA®542 Pivot Window is part of the Kawneer AA®540 Series window range designed to offer optimum weather and thermal performance at a competitive price. The AA®542 corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A+*. The AA®542 uses a multi-chamber thermal break core, ensuring thermal efficiency and full compliance with Document L.This download is for the AA542 Pivot Window Curtain Wall System. Stick curtain walling systems

Published [11/09/15]

KAWNEER UK LTD: AA543 Tilturn Window
The Kawneer AA®543 Tilturn Window is part of the Kawneer AA®540 Series window range, designed to offer optimum weather and thermal performance at a competitive price. The AA®543 corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A+**. The AA®543 uses a multi-chamber thermal break core, ensuring thermal efficiency and full compliance with Document L.This download is for the Kawneer AA543 Tilturn Window Curtain Wall System. Stick curtain walling systems

Published [11/09/15]

KAWNEER UK LTD: AA601 Blast Enhanced Window System
Kawneer AA601 Blast Enhanced Window System.This download is for the Kawneer AA601 Blast Enhanced Window System. It includes a pre-configured fixed/opening vent curtain wall window system and incorporated into a AA1202 curtain wall system. Aluminium curtain wall frame sections

Published [08/12/17]

KAWNEER UK LTD: AA720 Doors - (Curtain Wall Door)
The Kawneer AA®720 Door has been developed to meet the latest European requirements for thermal performance and has been future proofed against expected changes in thermal regulation up to 2019.As well as being fully integrated, the AA®720 Door can suite with Kawneer's curtain walling and framing products and is suitable for installation in low or high rise buildings for commercial and domestic new build or refurbishment projects.This download is for the Kawneer AA720 Doors (Curtain Wall Panel) Components and includes files for both single and double leaf openings. Metal doorsets

Published [18/01/16]

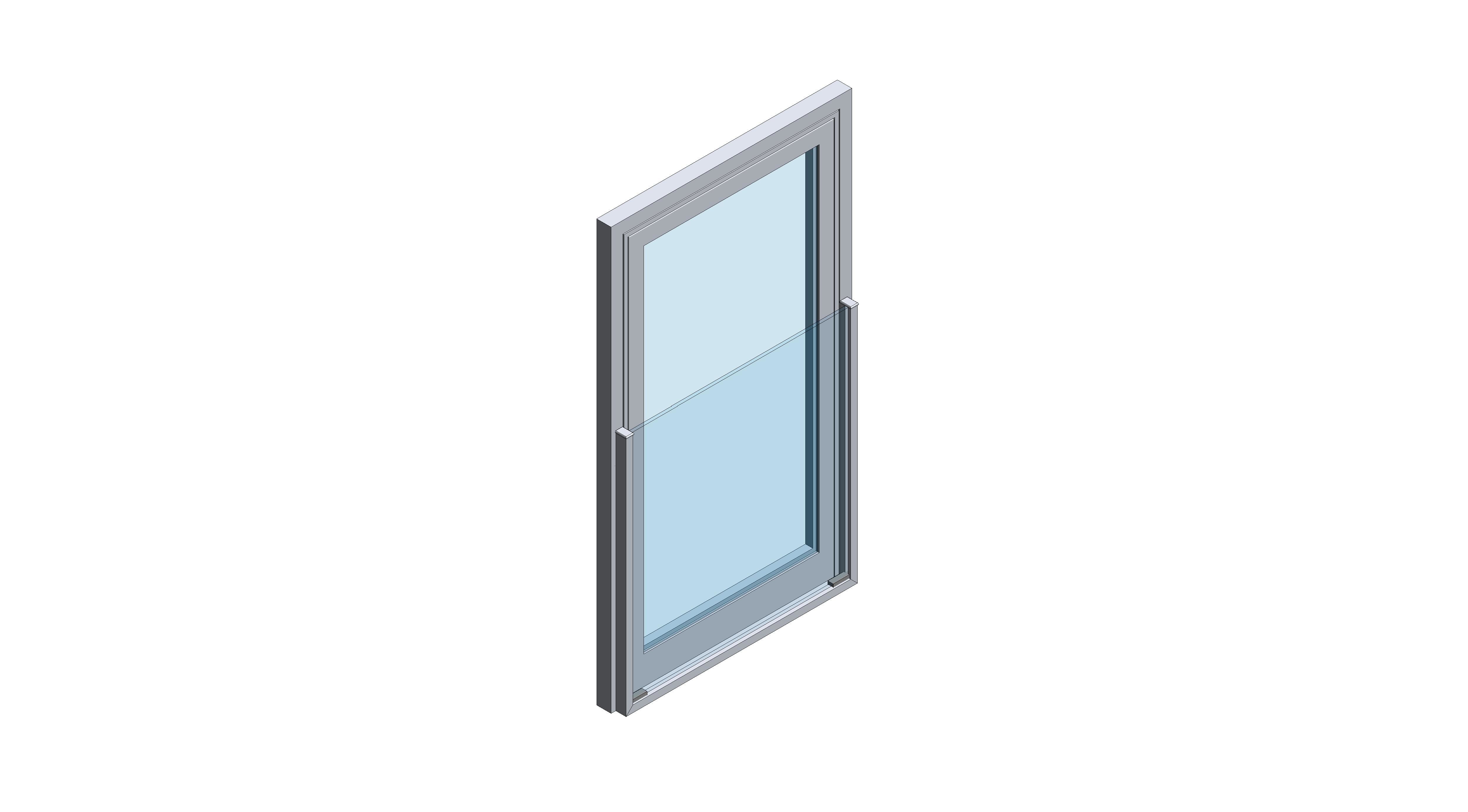

KAWNEER UK LTD: AA720 Juliet Balcony
Search, find and download quality BIM content and product data from some of the worlds largest Manufacturers and Brands. Doors

Published [08/02/19]

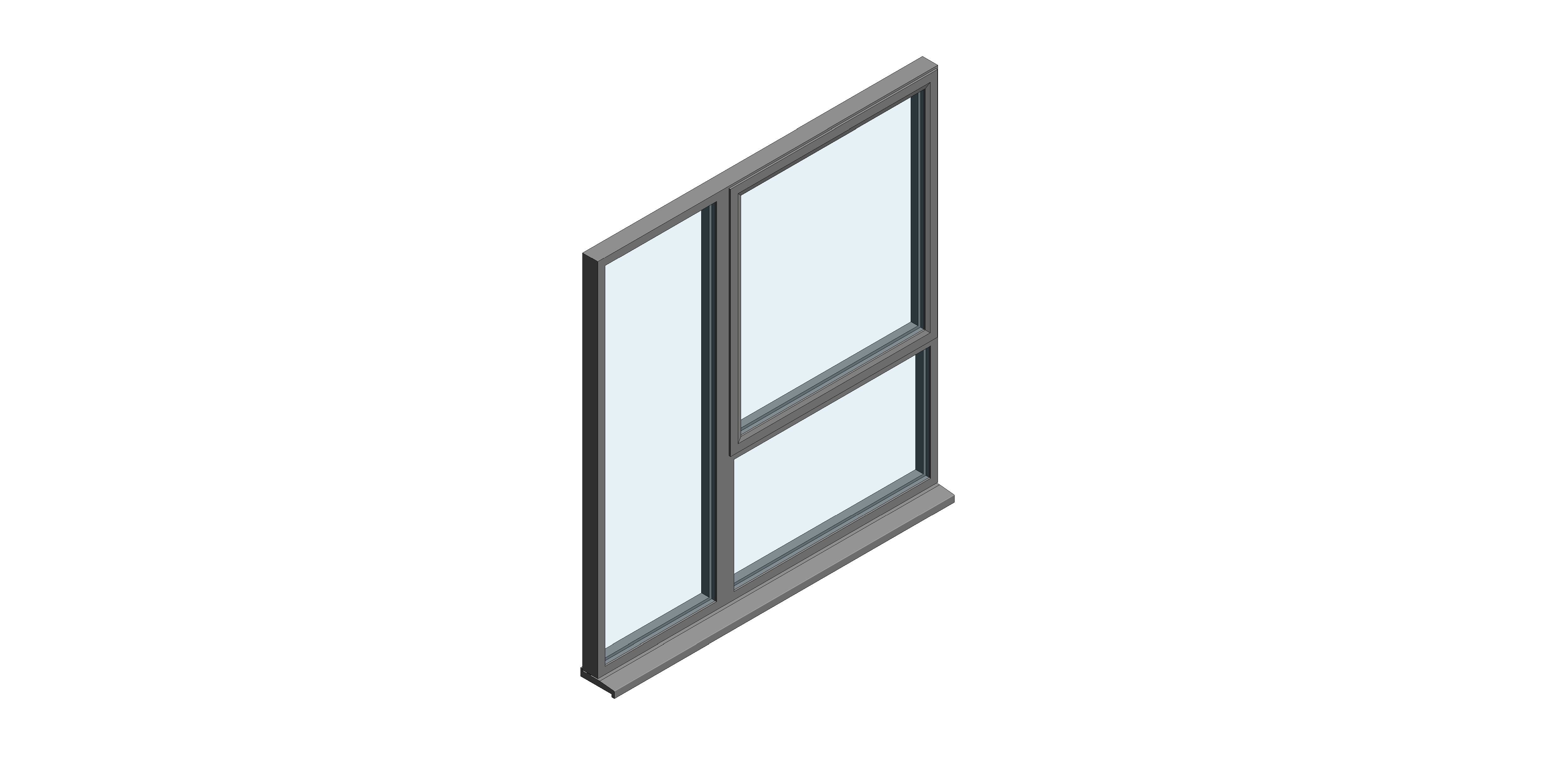

KAWNEER UK LTD: AA720 Open In Windows
The Kawneer AA®720 Open In Window is the latest addition to the AA®720 range of Windows and Doors. In line with the existing range, the AA®720 Casement is available in four levels of thermal performance - incorporating Kawneer's latest Relex unique thermal break technology. The AA®720 Open In Windows are available as top hung or side hung windows and can be either internally or externally glazed. Additional advantages of the advanced thermal break technology include the options of dual colour finishes, to provide design flexibility in various applications.This download is for the AA720 Casement Window Curtain Wall System.Rev 02 - Download split into 2 listings as follows;AA720 Open In WindowsAA720 Open Out Windows Stick curtain walling systems

Published [18/01/16]

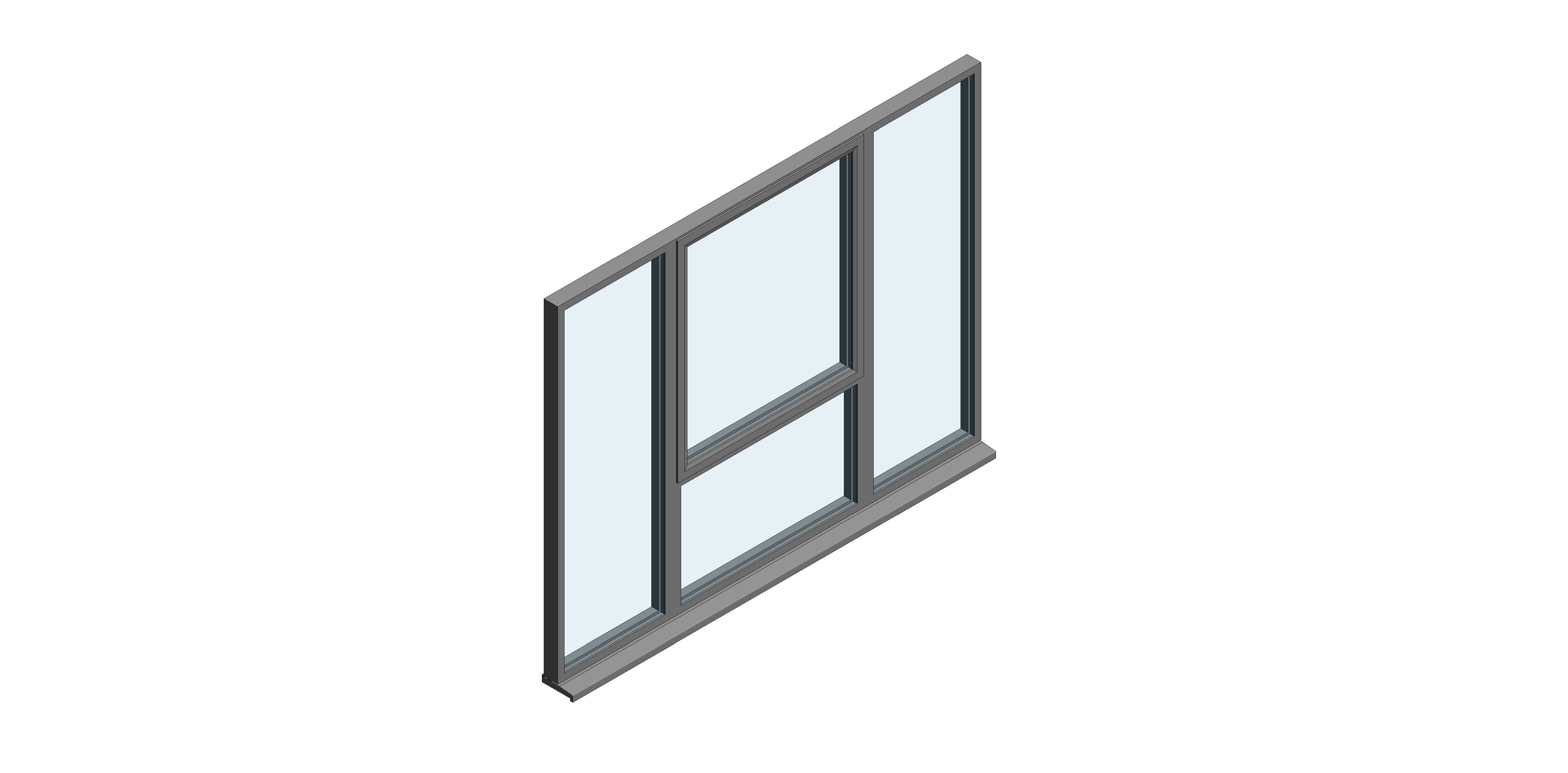

KAWNEER UK LTD: AA720 Open Out Windows
The Kawneer AA®720 Open Out Window is the latest addition to the AA®720 range of Windows and Doors. In line with the existing range, the AA®720 Casement is available in four levels of thermal performance - incorporating Kawneer's latest Relex unique thermal break technology. The AA®720 Open Out Windows are available as top hung or side hung windows and can be either internally or externally glazed. Additional advantages of the advanced thermal break technology include the options of dual colour finishes, to provide design flexibility in various applications.This download is for the AA720 Open Out Window Curtain Wall System. Stick curtain walling systems

Published [18/01/16]

KAWNEER UK LTD: Add On Louvre Type A
This download is for the Type A range of Add On Louvre components by Kawneer. Windows

Published [01/04/19]

KAWNEER UK LTD: Add On Louvre Type B
This download is for the Type B range of Add On Louvre components by Kawneer. Windows

Published [01/04/19]

KAWNEER UK LTD: Series 1202 ENHANCED Bomb Blast Mitigation System
The Kawneer ENHANCED curtain wall system is designed as a stick-frame assembly with weather performance achieved by drainage and ventilation of the glazing rebates. The system features zone drainage as a design principle where each glazed panel is self-drained. Drainage and ventilation is achieved via protected slots in the pressure plate.The system is available in a variety of mullion depths which combined with the thermal break options and aesthetic external capping provide flexibility of design, outstanding performance and ease of installation to suite individual project requirements.The system has been range tested to current requirements to ensure its performance. Specifications for design - MOD Defence Works Standard, USA Department of Defence Minimum Antiterrorism Standards for Buildings & Dynamic AssessmentThis download is for the Kawneer Series 1202 ENHANCED Bomb Blast Mitigation System. It includes pre-configured curtain wall types with a square face cap. Unitized curtain walling systems, Curtain Walls

Published [05/10/17]
