ZEHNDER LTD: Acoustic Induct Fan – AID100
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: Air Filter – NOx Filter
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: Carboline Radiant Panel
The Zehnder Carboline sets new standards in terms of heating performance, temperature distribution and controllability. Constructed from steel sheeting and a patented graphite and copper insert, the Zehnder Carboline is a smooth, flat and lightweight panel designed for both heating and cooling. This high-performance system can easily and practically be integrated into existing, new grid and suspended ceilings.Suitable for all commercial applications particularly hospital projects. Ideal for:600mm grid ceilingSmall panels with low flow ratesWhere hygiene is of the upmost importanceWhen a quick response to Building Maintenance Sytems is requiredCombined heating and coolingAdvantagesClean, smooth metal cassetteAcoustic absorption optionsHigh-tech patented carbon/copper elementAnti-bacterial paint finish RAL 9016 or 9010A-rated fire protection insulationThis component is fully parametric, and includes pre configured types within the single family. Contains all performance meta-data, Render materials and appropriate MEP connections.Models available for both open and closed ceilings as well as plasterboard ceiling solutions.Rev 02 - 'Faced Based' version available in Revit 2013 format. Radiant panels

Published [02/04/2014]

ZEHNDER LTD: Central Extract Unit – CME.4e
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: Converting Wall Based Component to Faced Based User Guide
Converting Wall Based Component to Faced Based User GuideThis download contains the 'Convert Wall Based to Face Based' user guid in PDF format. Mechanical Fixtures

Published [17/03/2014]

ZEHNDER LTD: d-MEV – CV2 GIP
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: d-MEV – CV3
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: Excelsior Radiator
The Zehnder Excelsior provides elegant styling and total flexibility with high levels of efficiency to add a little extra to a building's design. Use of the latest welding techniques and advanced finishing processes ensures that there are no sharp edges and that a high standard of finish is achieved every time. The Excelsior radiator is suitable for installation on all hot water central heating systems.Advantages:Slim flattened tubes welded,single/double parallel formationLow water content with fast, efficient, heat upStandard heights up to 2.5mStandard lengths up to 5.7mLarger models on requestElement spacing at 30,40,50,60mmWall or floor mounted optionsCurved or angled to suit special applicationsOutputs from 16 - 310 watts/sectionBespoke connection positions, vertical or horizontal entrySuitable for one or two pipe systemsSimple to install and to cleanDurable powder coat finish (Standard RAL9016 white)Wide range of colours including metallic finishesTested to current EN442 requirementsHigh pressure application (10.4 bar test pressure)This download is for the Zehnder Excelsior Radiator Component.Rev 02 - Connectors updated to Hydraulic. Keynote revised to T30.Rev 03 - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [26/05/2016]

ZEHNDER LTD: Heat Recovery Unit – CA160
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: Heat Recovery Unit – CA180
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: Heat Recovery Unit – CA200
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: Heat Recovery Unit – CA350
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: Heat Recovery Unit – HR155 CM
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: Heat Recovery Unit – HR155 WM
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: Heat Recovery Unit – HR185 WM
Search, find and download quality BIM content and product data from some of the world's largest Manufacturers and Brands. Mechanical Fixtures

Published [05/11/2019]

ZEHNDER LTD: HW87 Panel Radiator
Thanks to the varied range of models, the Zehnder HW87 can be integrated into any living space. A robust, anti-ligature, flat panel radiator; it is available as a horizontal or vertical model, with or without fins, and in a wide selection of colours.Fully parametric and configurable to standard Zehnder designs. Comes with a standard type catalogue pre-set with default size configurations.Rev 02 - 'Faced Based' version available in Revit 2013 format. Radiators

Published [02/04/2014]

ZEHNDER LTD: Multi Service Foil
In conjunction with Whitecroft Lighting, Zehnder has combined their expertise and knowledge in radiant heating with a leading manufacturer of lighting and acoustics. The Multi-service foil combines all the best features of good heating, lighting and acoustics, while allowing other classroom services to be incorporated into its aesthetic design, such as speakers, smoke detectors, fire alarms and sprinkler heads. The Multi-service foil helps create a more appealing ambience with an uncluttered ceiling.FeaturesFully compliant to Building Bulletin 93Quick response radiant heating technologyQuality lightingAcoustic performanceEasy to install with plug 'n' play connectionsCompatible with Building Maintenance SystemsMinimises a school's carbon footprintFull service integrationMade to measure optionsSuitable for heating and coolingTested to EN14037, EN12464 and ISO 354This download is for the Zehnder Multi Service Foil Component. Radiant panels

Published [16/08/2019]

ZEHNDER LTD: Multicolumn Completto Radiator
Combining timeless elegance with substantial heat emissions the Zehnder Multicolumn is suitable for both traditional and modern applications. Built to the highest quality, the radiators can be angled or curved to successfully meet the requirements of the most complex installation.Advantages:Classical, elegant profileVersatility of designSuitable for traditional or modern applicationsFast heat up with substantial emissionsBespoke connection positions, vertical or horizontal entryExtremely robust and easy to cleanLength is theoretically unlimitedDurable finish (RAL9016) white finish as standard3 model types - standard, completto and klinik5 widths and 2 to 6 columns deepOutputs from 14 to 491 watts/sectionTested to current EN442 requirementsWide range of colours including metallic finishesCurved and angled to suit site designFloor and wall mountedGalvanised versionThis download is for the Zehnder Multicolumn Completto Radiator range component.Rev 02 - 'Warning Message' added to components. Radiators

Published [02/04/2014]

ZEHNDER LTD: Multicolumn Klinik Radiator
Combining timeless elegance with substantial heat emissions the Zehnder Multicolumn is suitable for both traditional and modern applications. Built to the highest quality, the radiators can be angled or curved to successfully meet the requirements of the most complex installation.Advantages:Classical, elegant profileVersatility of designSuitable for traditional or modern applicationsFast heat up with substantial emissionsBespoke connection positions, vertical or horizontal entryExtremely robust and easy to cleanLength is theoretically unlimitedDurable finish (RAL9016) white finish as standard3 model types - standard, completto and klinik5 widths and 2 to 6 columns deepOutputs from 14 to 491 watts/sectionTested to current EN442 requirementsWide range of colours including metallic finishesCurved and angled to suit site designFloor and wall mountedGalvanised versionThis download is for the Zehnder Multicolumn Klinik Radiator range component.Rev 02 - 'Warning Message' added to components. Radiators

Published [02/04/2014]

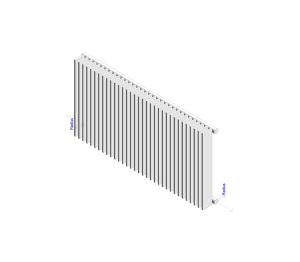

ZEHNDER LTD: Multicolumn Radiator
Combining timeless elegance with substantial heat emissions the Zehnder Multicolumn is suitable for both traditional and modern applications. Built to the highest quality, the radiators can be angled or curved to successfully meet the requirements of the most complex installation.Advantages:Classical, elegant profileVersatility of designSuitable for traditional or modern applicationsFast heat up with substantial emissionsBespoke connection positions, vertical or horizontal entryExtremely robust and easy to cleanLength is theoretically unlimitedDurable finish (RAL9016) white finish as standard3 model types - standard, completto and klinik5 widths and 2 to 6 columns deepOutputs from 14 to 491 watts/sectionTested to current EN442 requirementsWide range of colours including metallic finishesCurved and angled to suit site designFloor and wall mountedGalvanised versionThis download is for the Zehnder Multicolumn Radiator range component.Rev 02 - Includes additional families for 3,4,5 & 6 Column ranges, updated to Revit 2013 format.Rev 03 - 'Warning Message' added to components. Radiators

Published [02/04/2014]

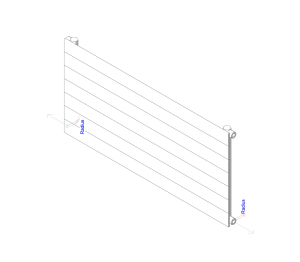

ZEHNDER LTD: Nova NH
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NH model only, other models are available for download from bimstore.co.uk.Rev 02 (23.04.13) - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [02/04/2014]

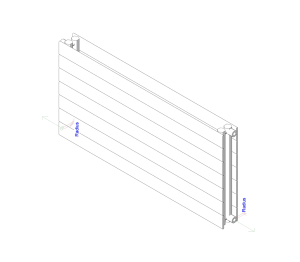

ZEHNDER LTD: Nova NHH
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NHH model only, other models are available for download from bimstore.co.uk.Rev 02 (23.04.13) - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [02/04/2014]

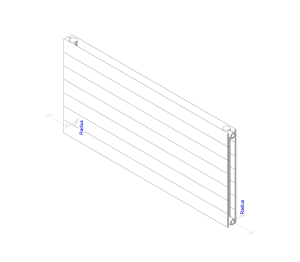

ZEHNDER LTD: Nova NHL
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NHL model only, other models are available for download from bimstore.co.uk.Rev 02 (23.04.13) - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [02/04/2014]

ZEHNDER LTD: Nova NHLH
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NHLH model only, other models are available for download from bimstore.co.uk.Rev 02 (23.04.13) - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [02/04/2014]

ZEHNDER LTD: Nova NHLLH
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova NHLLH model only, other models are available for download from bimstore.co.uk.Rev 02 (23.04.13) - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [02/04/2014]

ZEHNDER LTD: Nova NLHL
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NLHL model only, other models are available for download from bimstore.co.uk Radiators

Published [31/03/2014]

ZEHNDER LTD: Nova NLHLLHLS
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NLHLLHLS model only, other models are available for download from bimstore.co.uk. Radiators

Published [16/03/2014]

ZEHNDER LTD: Nova NLHLS
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NLHLS model only, other models are available for download from bimstore.co.uk. Radiators

Published [16/03/2014]

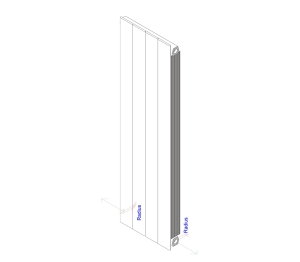

ZEHNDER LTD: Nova NV
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NV model only, other models are available for download from bimstore.co.uk.Rev 02 (23.04.13) - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [02/04/2014]

ZEHNDER LTD: Nova NVL
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NVL model only, other models are available for download from bimstore.co.uk.Rev 02 (23.04.13) - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [02/04/2014]

ZEHNDER LTD: Nova NVLV
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NVLV model only, other models are available for download from bimstore.co.uk.Rev 02 (23.04.13) - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [02/04/2014]

ZEHNDER LTD: Nova NVV
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NVV model only, other models are available for download from bimstore.co.uk.Revision 2 (08-06-11) - Problem with type catalogue not loading has now been fixed.Revision 3 (23.04.13) - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [02/04/2014]

ZEHNDER LTD: Nova NVV-4SR
The Zehnder Nova is a slim and attractive panel radiator that provides complete flexibility of design and installation. It is suitable for installation on all hot water central heating systems. Available in vertical or horizontal versions and in a wide range that includes double panels or combinations of panel and convector fins, the Zehnder Nova provides the total solution for any environment.This component is fully parametric, and includes type catalogue with all models pre-configured. The length can be entered as an instance parameter, or by using the pull handles in a plan view. Contains all performance meta-data, Render materials and appropriate MEP connections.This component is for the Nova-NVV-4SR model only, other models are available for download from bimstore.co.uk.Rev 02 (23.04.13) - Revised to Generic Template. MEP info amended. Updated to Revit 2013 format. Radiators

Published [02/04/2014]

ZEHNDER LTD: Radiavector Radiator
As a low profile radiator the Zehnder Radiavector is suitable for perimeter applications and locations that are traditionally difficult to heat. Unobtrusive, and offering exceptionally high outputs, the Zehnder Radiavector can be mounted in series on either the wall or the floor.This download is for the Zehnder Radiavector Radiator Component. Radiators

Published [09/04/2018]

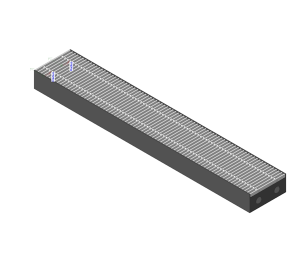

ZEHNDER LTD: Terraline Trench Heating
Simple to install and virtually unseen, the Zehnder Terraline trench heater complements any room without compromising the architectural design. Exact to the nearest millimetre and with corner and angle options, it allows for individual and economical solutions. It can be combined with additional heating and ventilation systems, in order to ensure the ideal indoor climate. As well as the reliably high product quality associated with all Zehnder heating systems, the Zehnder Terraline offers a number of advantages.A high heat output whilst occupying minimal spaceAngled and corner optionsNatural convection (3 heights, 4 widths) and fan assisted (3 heights, 3 widths) modelsLengths 900 – 4000mm (in 100mm increments)Outputs from 87 – 7117 Watts/m (dependent on model)Powder-painted casings with a variety of grille typesWide range of colour finishesOptional protective cover for use during installationThis component has been created as a floor hosted component and comes with a separate type catalogue that must be placed in the same library directory as the BIM component. The length parameter is created as a 'stretchy' instance parameter, so place the component in your model and stretch to suit and the performance and meta data updates automatically.Rev 02 - 'Faced Based' version available in Revit 2013 format.Rev 03 - 'Faced Based' version updated. Radiators

Published [27/11/2015]

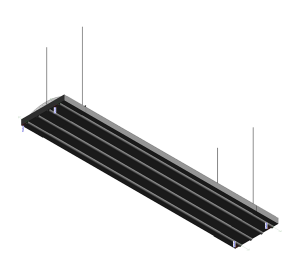

ZEHNDER LTD: ZBN Radiant Panel
Zehnder ZBN radiant ceiling panels can provide heating and cooling both comfortably and efficiently. They can be used in all rooms up to 30 m height. Energy savings of more than 40 % are possible in comparison to other systems. Zehnder ZBN radiant ceiling panels are available in a variety of widths and lengths and can be specified to suit each application. Features such as lighting apertures, mitred corners and perforations for acoustic performance can be easily incorporated.This download is for the Zehnder ZBN Radiant Panel Component.Rev 02 - Connectors updated to Hydraulic. Keynote revised to T30.Rev 03 - Upgraded to version 14 of the bimstore bible. Upgraded to Revit 2014. Additional types added. Radiant panels

Published [19/01/2017]

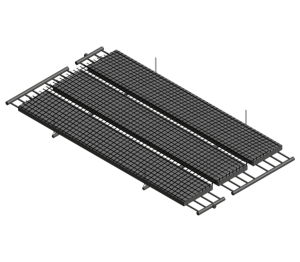

ZEHNDER LTD: ZIP Radiant Ceiling Panel
Zehnder ZIP radiant ceiling panels have multiple design possibilities thanks to their modular construction making them ideal for every industrial installation situation. Above all, the much lower weight not only makes installation easier, but also makes the panel the number one choice for roof constructions that are only able to support lighter loads. All components are corrosion resistant, which also makes them the ideal choice for use in damp rooms.Suitable for all commercial and industrial applications.This download is for the Zehnder ZIP Radiant Ceiling Panel Component.This download is a face based Mechanical Equipment component created by bimstore.co.uk for Zehnder.This component is created in Revit 2016 for use in MEP systems and is in line with 2015 industry standards. Radiant panels

Published [05/04/2018]
